The W25Q128JWPIM has a minimum of 100,000 erase cycles per sector, and a maximum of 1,000,000 erase cycles per sector, depending on the operating conditions.
The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all operations will be paused until the HOLD# signal is de-asserted.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.
The W25Q128JWPIM has a density of 128 Mbits, organized as 16,384 x 8,192 bytes. The device is divided into 2,048 sectors, each containing 64 Kbytes.
The WP# pin is used to enable or disable the write protection feature. When WP# is low, the device is in write-protect mode, and no write operations are allowed. When WP# is high, the device is in normal operation mode, and write operations are allowed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q128JWPIM Overview

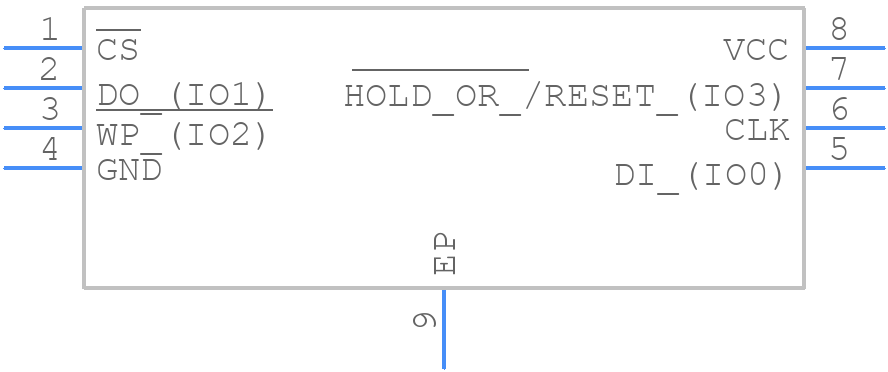

Use the download button to access the W25Q128JWPIM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q1,
or try a keyword search, such as Flash Memories
Suggested Parts
If you searched for W25Q128JWPIM, you might also be interested in these parts:
