The W25Q16BVSSIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and operating conditions.
The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, drive the HOLD# pin low to pause the operation, and drive it high to resume the operation.
The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a portion of it from being written or erased. When WP# is low, the memory is write-protected.
The optimal clock frequency for the W25Q16BVSSIG depends on the specific application and system requirements. The datasheet recommends a maximum clock frequency of 104 MHz, but the actual frequency may need to be adjusted based on system constraints and signal integrity.
The main difference between the W25Q16BVSSIG and the W25Q16BVSSIQ is the operating temperature range. The W25Q16BVSSIG has an operating temperature range of -40°C to 85°C, while the W25Q16BVSSIQ has an operating temperature range of -40°C to 125°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q16BVSSIG Overview

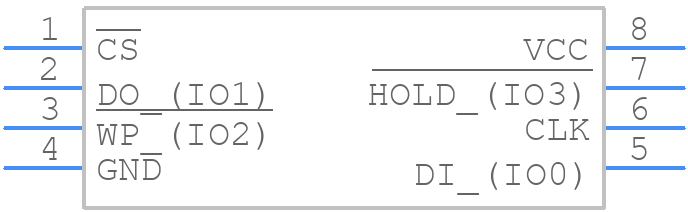

Use the download button to access the W25Q16BVSSIG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q1,
or try a keyword search, such as Flash Memories
