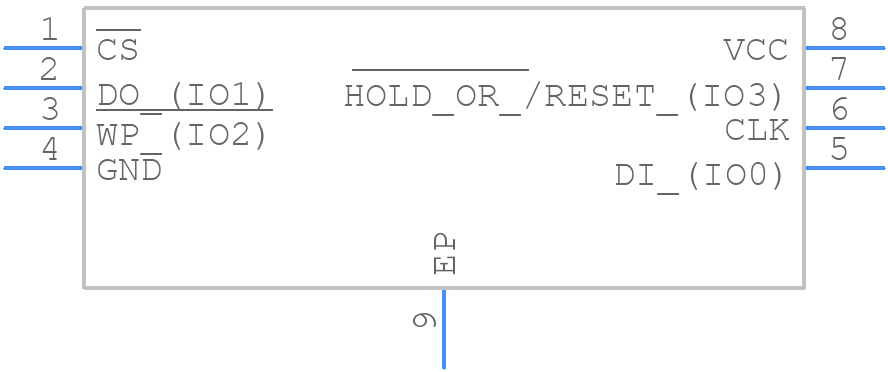

W25Q16JLZPIG - Winbond

W25Q16JLZPIG Details

• Manufacturer Part Number:

  W25Q16JLZPIG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WSON-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Date Of Intro:

  2017-07-25

• Manufacturer:

  Winbond Electronics Corp

• YTEOL:

  5.3

• Additional Feature:

  IT ALSO OPERATES AT FREQUENCY 50 MHZ AT SUPPLY VOLTAGE 2.3 TO 2.7 V

• Alternate Memory Width:

  1

• Clock Frequency-Max (fCLK):

  104 MHz

• JESD-30 Code:

  R-PDSO-N8

• Length:

  6 mm

• Memory Density:

  16777216 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Words:

  2097152 words

• Number of Words Code:

  2000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  2MX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Parallel/Serial:

  SERIAL

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Programming Voltage:

  3 V

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Type:

  NOR TYPE

• Width:

  5 mm
