The W25Q16JVSNIM has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and operating conditions.
The HOLD# signal is used to pause the flash memory operation. To use it, connect HOLD# to a GPIO pin on your microcontroller and assert it low to pause the operation. Deassert it to resume the operation.
The recommended POR timing is to hold the reset signal low for at least 10ms after power-on to ensure the device is properly initialized.
Yes, the W25Q16JVSNIM is compatible with 1.8V power supplies. However, ensure that the input signals are also 1.8V-compatible to avoid signal integrity issues.
Wear leveling is a software-based technique to distribute erase cycles evenly across the device. Implement a wear leveling algorithm in your firmware to ensure the device's lifespan is maximized.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q16JVSNIM Overview

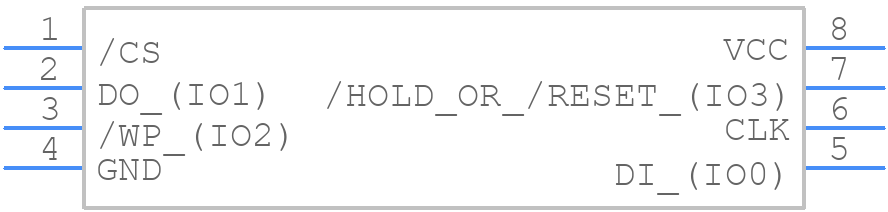

Use the download button to access the W25Q16JVSNIM schematic symbol, PCB footprint, and 3D model.
