W25Q16JVXGIQ TR - Winbond

Description: NOR Flash spiFlash, 3V, 16M-bit, 4Kb Uniform Sector

Download W25Q16JVXGIQ TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W25Q16JVXGIQ TR model

Email notifications will be applied after download.

Send part feedback

Symbol

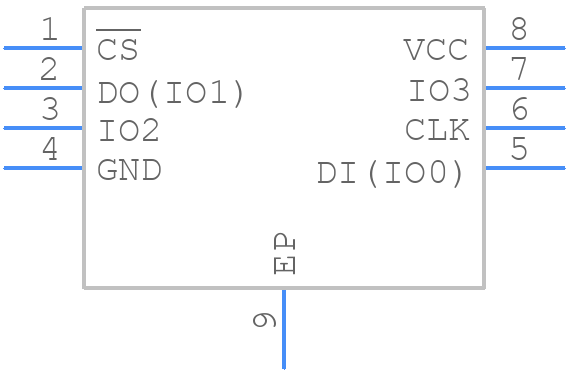

W25Q16JVXGIQ TR - Winbond - PCB symbol

PCB Footprints

W25Q16JVXGIQ TR - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad XSON 4x4x0.45-mm (Package Code XG)

3D Models

W25Q16JVXGIQ TR - Winbond - 3D model - Small Outline No-lead - 8-Pad XSON 4x4x0.45-mm (Package Code XG)

Datasheet Download Datasheet
Stock & Prices Price & Stock for W25Q16JVXGIQ TR
Part Number W25Q16JVXGIQ TR
Manufacturer Winbond
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8-Pad XSON 4x4x0.45-mm (Package Code XG)
Released Date Dec 6, 2024
Last Modified Date Dec 6, 2024 4:09 AM UTC
Pinout / Pin List Click Here (Member Only)

W25Q16JVXGIQ TR Details

Manufacturer Part Number:
W25Q16JVXGIQ TR
Manufacturer:
Winbond Electronics Corp

Trust Checks

Community Provided

System Verified

Community Approved

W25Q16JVXGIQ TR Overview

Use the download button to access the W25Q16JVXGIQ TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like W25Q1, or try a keyword search, such as Flash Memories
