W25Q16JVZPIM - Winbond

Description: 16Mb Serial NOR Flash 133MHz SON8

Download W25Q16JVZPIM Model

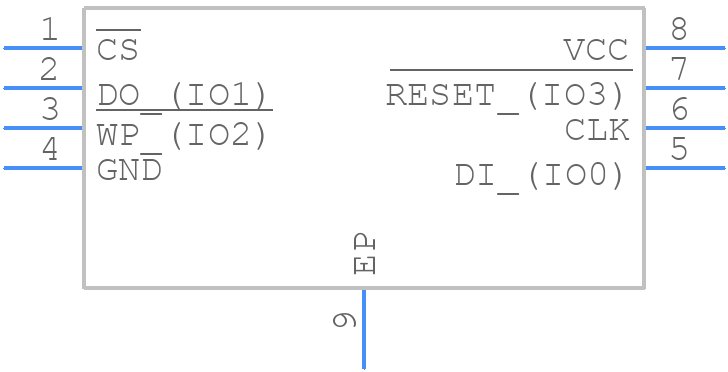

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q16JVZPIM - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 6x5-mm (Package Code ZP)
click to zoom
3D Models
W25Q16JVZPIM - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 6x5-mm (Package Code ZP)
click to zoom

W25Q16JVZPIM Details

  • Manufacturer Part Number:

    W25Q16JVZPIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000015 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q16JVZPIM Frequently Asked Questions (FAQs)

  • The W25Q16JVZPIM has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The HOLD# signal is used to pause the flash memory operation. To use it, connect HOLD# to a GPIO pin and assert it low to pause the operation. Deassert HOLD# to resume the operation.
  • The recommended POR timing is to power up the device with a ramp-up time of 1 ms to 10 ms, and then wait for at least 10 ms before accessing the device.
  • Yes, the W25Q16JVZPIM is compatible with 1.8V power supply. However, ensure that the input signals are within the recommended voltage range to prevent damage to the device.
  • Wear leveling is a technique to evenly distribute the erase cycles across the device. Implementing wear leveling requires a software-based approach, such as using a flash translation layer (FTL) or a wear-leveling algorithm in the application code.
