W25Q32JVSFIQ - Winbond

Description: FLASH - NOR Memory IC 32Mbit SPI - Quad I/O 133 MHz 16-SOIC

Download W25Q32JVSFIQ Model

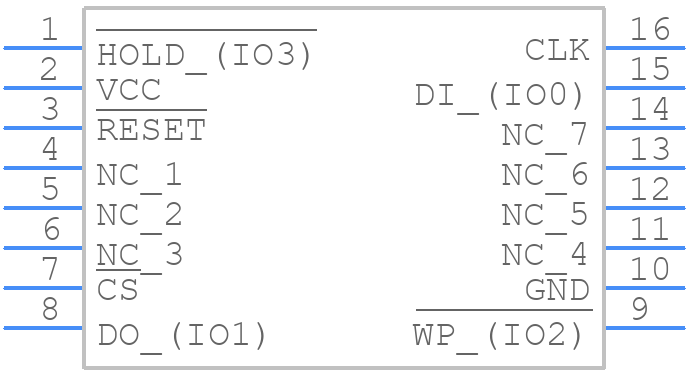

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q32JVSFIQ - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin SOIC 300-mil (Package Code SF)
click to zoom
3D Models
W25Q32JVSFIQ - Winbond  - 3D model - Small Outline Packages - 16-Pin SOIC 300-mil (Package Code SF)
click to zoom

W25Q32JVSFIQ Details

  • Manufacturer Part Number:

    W25Q32JVSFIQ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.31 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.64 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.49 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q32JVSFIQ Frequently Asked Questions (FAQs)

  • The W25Q32JVSFIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the flash memory operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume. Make sure to check the datasheet for the specific timing requirements.
  • The recommended POR timing is to wait for at least 10ms after power-on before accessing the device. This allows the internal voltage regulator to stabilize and ensures reliable operation.
  • Yes, the W25Q32JVSFIQ is compatible with 1.8V power supplies. However, make sure to check the datasheet for the specific voltage range and operating conditions to ensure reliable operation.
  • The write protection (WP#) pin is used to protect the device from accidental writes. To enable write protection, pull the WP# pin low. To disable write protection, pull the WP# pin high or leave it floating.
