W25Q32JVTCIQ - Winbond

Description: FLASH - NOR Memory IC 32Mbit SPI - Quad I/O 133 MHz 24-TFBGA (8x6)

Download W25Q32JVTCIQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

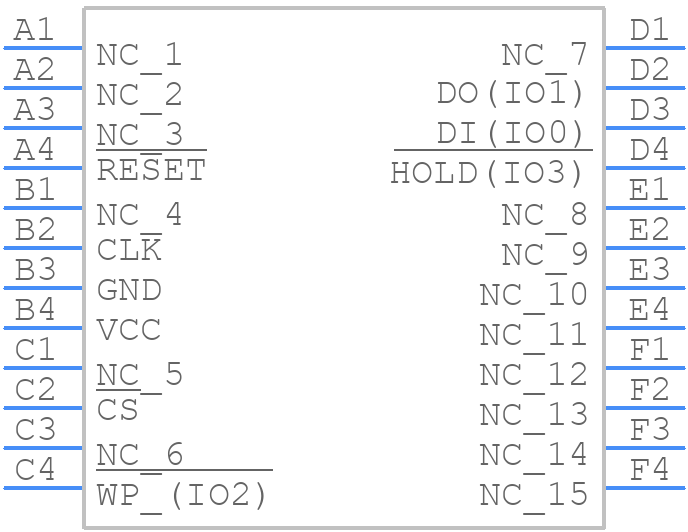

W25Q32JVTCIQ - Winbond - PCB symbol
click to zoom
PCB Footprints
W25Q32JVTCIQ - Winbond PCB footprint - BGA - BGA - 24-Ball TFBGA 8x6-mm (Package Code TC, 6x4 ball array)
click to zoom
3D Models
W25Q32JVTCIQ - Winbond - 3D model - BGA - 24-Ball TFBGA 8x6-mm (Package Code TC, 6x4 ball array)
click to zoom

W25Q32JVTCIQ Details

  • Manufacturer Part Number:

    W25Q32JVTCIQ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,4X6,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000015 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q32JVTCIQ Frequently Asked Questions (FAQs)

  • The W25Q32JVTCIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
  • The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The WP# pin is the write protect pin. When pulled low, it prevents writing to the status register and the memory array. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.
  • The optimal clock frequency depends on the specific application and system requirements. The W25Q32JVTCIQ supports clock frequencies up to 104 MHz, but you should consider factors such as power consumption, noise tolerance, and system latency when selecting a clock frequency.
  • The main difference between the two is the package type. The W25Q32JVTCIQ is a TSOP-8 package, while the W25Q32JVSSIQ is a SOIC-8 package. Both have the same functionality and performance.
