The W25Q32JWSSAQ has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
The recommended clock frequency for the W25Q32JWSSAQ is up to 104 MHz. However, it's recommended to check the specific application and system requirements to ensure the clock frequency is within the specified range.
The WP# pin is used to enable or disable write protection for the status register. To enable write protection, connect WP# to VCC. To disable write protection, connect WP# to GND. Note that the WP# pin only affects the status register and does not affect the data stored in the flash memory.
The main difference between the W25Q32JWSSAQ and the W25Q32JVSSAQ is the package type. The W25Q32JWSSAQ is available in a SOIC-8 package, while the W25Q32JVSSAQ is available in a VSOP-8 package. Both devices have the same electrical characteristics and functionality.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q32JWSSAQ Overview

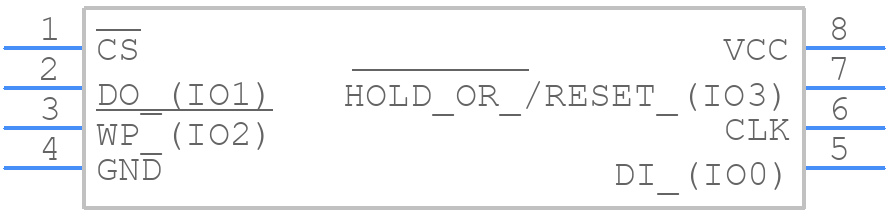

Use the download button to access the W25Q32JWSSAQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q3,
or try a keyword search, such as Flash Memories
