Part Image

W25Q32JWZPIM - Winbond

Description: SON8

Download W25Q32JWZPIM Model

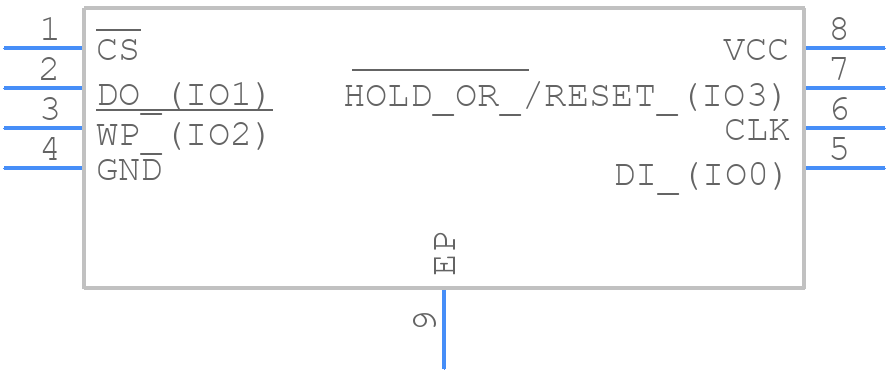

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q32JWZPIM - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 10.1 8-Pad WSON 6x5-mm (Package Code ZP)--
click to zoom
3D Models
W25Q32JWZPIM - Winbond  - 3D model - Small Outline No-lead - 10.1 8-Pad WSON 6x5-mm (Package Code ZP)--
click to zoom

W25Q32JWZPIM Details

  • Manufacturer Part Number:

    W25Q32JWZPIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2017-12-21

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q32JWZPIM Frequently Asked Questions (FAQs)

  • The W25Q32JWZPIM has a minimum of 100,000 erase cycles per sector, and a total of 10,000,000 program/erase cycles for the entire device.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
  • The W25Q32JWZPIM supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower for reliable operation.
  • The WP# pin is an active low input that enables or disables write protection. When WP# is low, the entire device is write-protected. When WP# is high, the device can be written to. Note that the WP# pin only affects the status register and does not affect the data stored in the device.
  • The main difference between the two devices is the package type. The W25Q32JWZPIM is a 8-pin WSON package, while the W25Q32JVZPIM is a 8-pin VSOP package. Both devices have the same electrical characteristics and functionality.
