- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for W25Q40EWSSIG
- Part Number W25Q40EWSSIG
- Manufacturer Winbond
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-Pin SOIC 208-mil (Package Code SS)
- Released Date Jul 22, 2024
- Last Modified Date Jul 22, 2024 4:28 AM UTC
- Pinout / Pin List Click Here (Member Only)
W25Q40EWSSIG Details
-
Manufacturer Part Number:
W25Q40EWSSIG
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.32.00.51
-
Date Of Intro:
2020-06-17
-
Manufacturer:
Winbond Electronics Corp
-
Memory IC Type:
FLASH
-
Peak Reflow Temperature (Cel):
NOT SPECIFIED
-
Programming Voltage:
1.8 V
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
W25Q40EWSSIG Overview

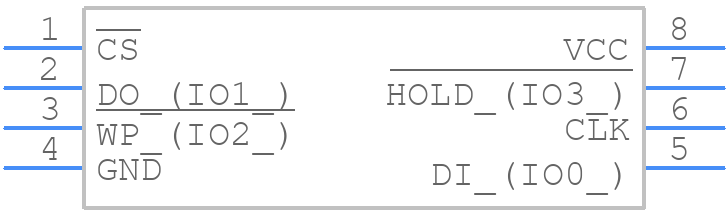

Use the download button to access the W25Q40EWSSIG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q4,
or try a keyword search, such as Flash Memories
