W25Q512JVEIM - Winbond

Description: SON8

Download W25Q512JVEIM Model
Schematic
symbols

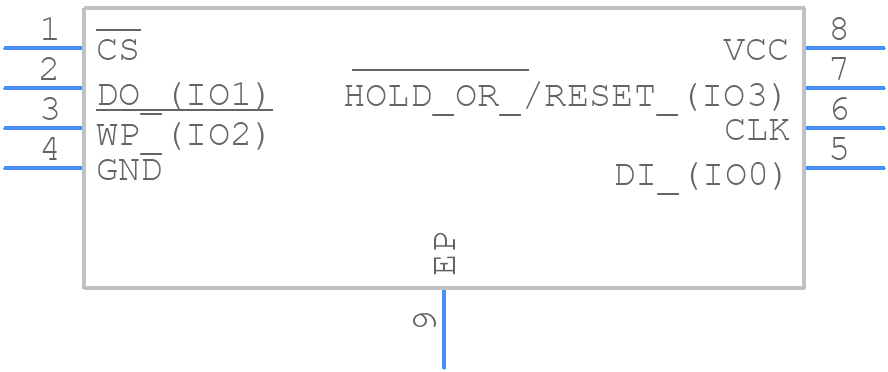

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q512JVEIM - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
click to zoom
3D Models
W25Q512JVEIM - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
click to zoom

W25Q512JVEIM Details

  • Manufacturer Part Number:

    W25Q512JVEIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.3

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6 mm

W25Q512JVEIM Frequently Asked Questions (FAQs)

  • The W25Q512JVEIM has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
  • The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all operations will be paused until the signal is de-asserted.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures proper device initialization and prevents latch-up conditions.
  • The WP# signal should be tied low to enable write operations. If WP# is tied high, the device will be in a write-protected state, and all write operations will be ignored.
  • The maximum operating frequency for the W25Q512JVEIM is 133 MHz, but the actual frequency may vary depending on the specific application and system design.
