W25Q512JVEIQ - Winbond

Description: 512Mb Serial NOR Flash 133MHz SON8

Download W25Q512JVEIQ Model

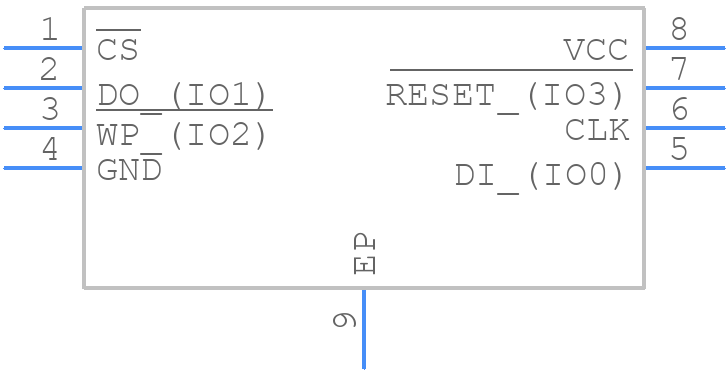

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q512JVEIQ - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
click to zoom
3D Models
W25Q512JVEIQ - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
click to zoom

W25Q512JVEIQ Details

  • Manufacturer Part Number:

    W25Q512JVEIQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Additional Feature:

    ALSO OPERATES AT 2.7VMIN @104MHZ

  • Alternate Memory Width:

    4

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00006 A

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q512JVEIQ Frequently Asked Questions (FAQs)

  • The W25Q512JVEIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
  • The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The recommended clock frequency for the W25Q512JVEIQ is up to 104 MHz, but it can operate at frequencies up to 133 MHz in fast mode.
  • Wear leveling is not implemented internally in the W25Q512JVEIQ. It is recommended to implement wear leveling in software to ensure even wear across the device and extend its lifespan.
  • The WP# pin is the write protect pin. When pulled low, it prevents writing to the status register and protects the device from accidental writes. Pull the WP# pin high to enable writing to the status register.
