W25Q64FWZPIG - Winbond

Description: NOR Flash spiFlash, 64M-bit, 4Kb Uniform Sector

Download W25Q64FWZPIG Model

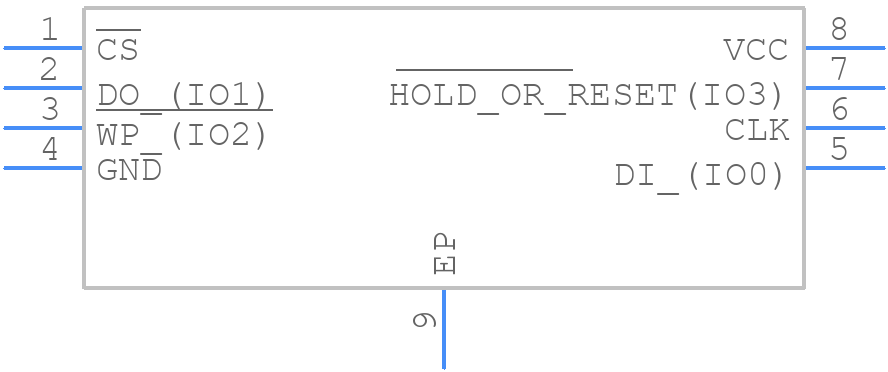

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q64FWZPIG - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON
click to zoom
3D Models
W25Q64FWZPIG - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON
click to zoom

W25Q64FWZPIG Details

  • Manufacturer Part Number:

    W25Q64FWZPIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q64FWZPIG Frequently Asked Questions (FAQs)

  • The W25Q64FWZPIG has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The HOLD# signal is used to pause the flash memory operation. To use it, connect HOLD# to a GPIO pin on your microcontroller and assert it low to pause the operation. Deassert it to resume the operation.
  • The WP# pin is used to protect the status register from being written. When WP# is low, the status register is write-protected. When WP# is high, the status register can be written.
  • The optimal clock frequency depends on the specific application and system requirements. The W25Q64FWZPIG supports clock frequencies up to 104 MHz. You should consult the datasheet and perform testing to determine the optimal frequency for your design.
  • The main difference is the operating voltage range. The W25Q64FWZPIG operates from 2.7V to 3.6V, while the W25Q64JVZPIG operates from 2.3V to 3.6V. The 'F' version is suitable for 3.3V systems, while the 'J' version is suitable for 2.5V systems.
