The W25Q64JVSSIM has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
The WP# pin is the write protect pin. When pulled low, it prevents writing to the status register and the memory array. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.
The optimal clock frequency depends on the specific application and system requirements. The W25Q64JVSSIM supports clock frequencies up to 104 MHz, but you should consider factors such as power consumption, noise tolerance, and system latency when selecting the clock frequency.
The main difference between the W25Q64JVSSIM and the W25Q64JVSSIQ is the operating temperature range. The W25Q64JVSSIM has an operating temperature range of -40°C to 85°C, while the W25Q64JVSSIQ has an operating temperature range of -40°C to 125°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q64JVSSIM Overview

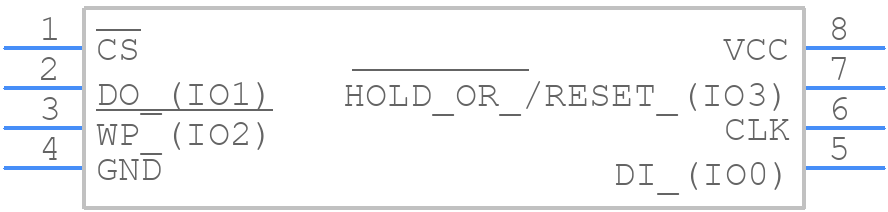

Use the download button to access the W25Q64JVSSIM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q6,
or try a keyword search, such as Flash Memories
