The W25Q80DVBYIG has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
The W25Q80DVBYIG supports clock frequencies up to 104 MHz, but it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and minimize power consumption.
The WP# pin should be pulled high during normal operation to allow write and erase operations. If the WP# pin is pulled low, the device will be in a protected state, and write and erase operations will be disabled.
The Deep Power-Down (DP) mode is a low-power state that reduces the device's power consumption to a minimum. It's useful for battery-powered devices or applications where power consumption needs to be minimized.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q80DVBYIG Overview

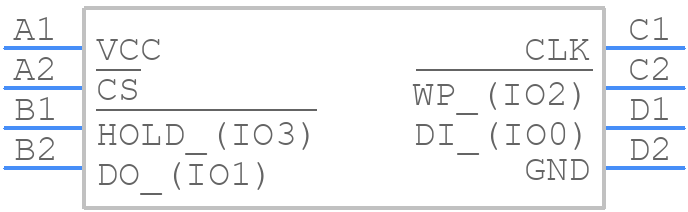

Use the download button to access the W25Q80DVBYIG schematic symbol, PCB footprint, and 3D model.
