W25Q80DVUXIE TR - Winbond

Description: FLASH - NOR Memory IC 8Mb (1M x 8) SPI 104MHz 8-USON (2x3)

Download W25Q80DVUXIE TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W25Q80DVUXIE TR model

Email notifications will be applied after download.

Send part feedback

Symbol

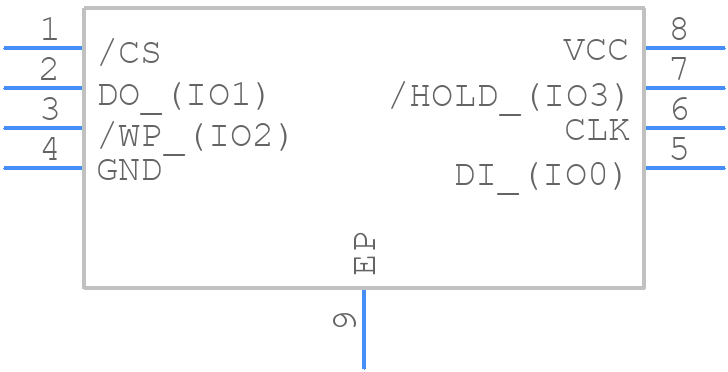

W25Q80DVUXIE TR - Winbond - PCB symbol

PCB Footprints

W25Q80DVUXIE TR - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad USON 2x3mm (UX)

3D Models

W25Q80DVUXIE TR - Winbond - 3D model - Small Outline No-lead - 8-Pad USON 2x3mm (UX)

Datasheet Download Datasheet
Stock & Prices Price & Stock for W25Q80DVUXIE TR
Part Number W25Q80DVUXIE TR
Manufacturer Winbond
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8-Pad USON 2x3mm (UX)
Released Date Nov 5, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W25Q80DVUXIE TR Details

Manufacturer Part Number:
W25Q80DVUXIE TR
Manufacturer:
Winbond Electronics Corp
