W25Q80DVUXIE - Winbond

Description: 8Mb Serial NOR Flash 104MHz SON8

Download W25Q80DVUXIE Model
Schematic
symbols

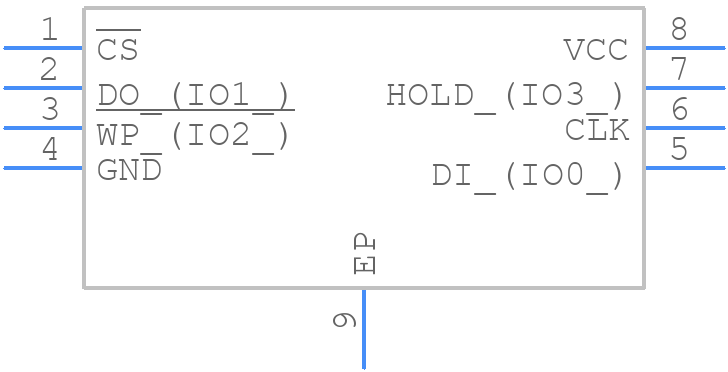

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q80DVUXIE - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad USON 2x3x0.6-mm
click to zoom
3D Models
W25Q80DVUXIE - Winbond  - 3D model - Small Outline No-lead - 8-Pad USON 2x3x0.6-mm
click to zoom

W25Q80DVUXIE Details

  • Manufacturer Part Number:

    W25Q80DVUXIE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00006 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    2 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q80DVUXIE Frequently Asked Questions (FAQs)

  • The W25Q80DVUXIE supports up to 100,000 erase cycles.
  • The hold pin (HOLD#) is used to pause the serial flash memory during a read or write operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume.
  • The WP# pin is the write protect pin. When pulled low, it prevents writing to the status register and the memory array. To use it, pull the WP# pin low to enable write protection, and pull it high to disable write protection.
  • The optimal clock frequency depends on the specific application and system requirements. The W25Q80DVUXIE supports clock frequencies up to 104 MHz. You should consult the datasheet and application notes to determine the optimal clock frequency for your specific use case.
  • The W25Q80DVUXIE is a 8Mb serial flash memory device with a x8 or x16 bus width, whereas other similar devices may have different capacities, bus widths, or features. Consult the datasheet and product briefs to determine the best device for your specific application.
