The W25Q80DVUXJE has a minimum of 100,000 erase cycles per sector, and a total of 20,000,000 erase cycles for the entire device.
The hold pin (HOLD#) should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
The recommended clock frequency for the W25Q80DVUXJE is up to 104 MHz. However, it's recommended to check the specific application and system requirements to ensure the clock frequency is within the specified range.
The WP# pin should be pulled high during normal operation to enable write operations. If the WP# pin is pulled low, the device will be in a protected state, and write operations will be disabled.
The QPI mode allows the W25Q80DVUXJE to operate in a quad-bus mode, which enables faster data transfer rates and improved performance. This mode is useful for applications that require high-speed data transfer.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25Q80DVUXJE Overview

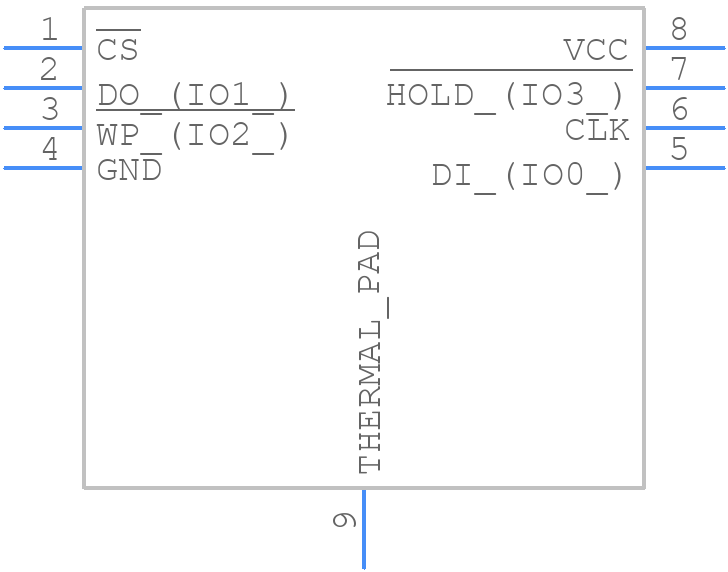

Use the download button to access the W25Q80DVUXJE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W25Q8,
or try a keyword search, such as Flash Memories
