W25X40CLSSIG - Winbond

Description: 4Mb Serial NOR Flash 104MHz SOP8

Download W25X40CLSSIG Model

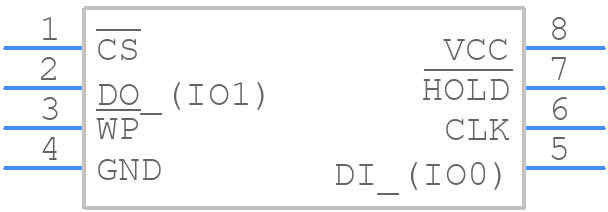

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25X40CLSSIG - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code SS)
click to zoom
3D Models
W25X40CLSSIG - Winbond  - 3D model - Small Outline Packages - 8-Pin SOIC 208-mil (Package Code SS)
click to zoom

W25X40CLSSIG Details

  • Manufacturer Part Number:

    W25X40CLSSIG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC

  • Package Description:

    0.208 INCH, GREEN, PLASTIC, SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES AT 2.3 V AT 80 MHZ

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    5.28 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.28 mm

W25X40CLSSIG Frequently Asked Questions (FAQs)

  • The W25X40CLSSIG supports up to 100,000 erase cycles.
  • The W25X40CLSSIG uses a page-based programming and erasure mechanism, where each page is 256 bytes. The device can program and erase pages individually.
  • The WP# (Write Protect) pin is used to prevent accidental writes or erasures to the device. When the WP# pin is low, the device is write-protected.
  • The W25X40CLSSIG has a built-in power-on reset circuit that ensures the device is in a known state after power-up. The device resets to a read-array mode after power-on.
  • The recommended operating voltage range for the W25X40CLSSIG is 2.7V to 3.6V.
