Part Image

W25X40CVSNAG - Winbond

Description: NOR Flash Serial-SPI 3.3V 4Mbit 512K X 8bit 8ns 8-Pin SOIC Tube

Download W25X40CVSNAG Model

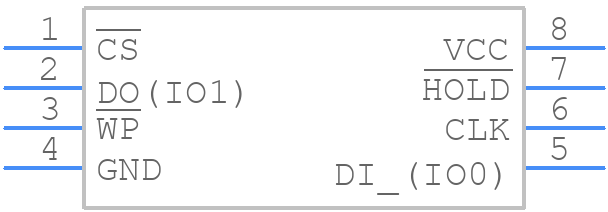

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25X40CVSNAG - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC 150-mil (Package Code SN)
click to zoom
3D Models
W25X40CVSNAG - Winbond  - 3D model - Small Outline Packages - 8-Pin SOIC 150-mil (Package Code SN)
click to zoom

W25X40CVSNAG Details

  • Manufacturer Part Number:

    W25X40CVSNAG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    5.1

  • Clock Frequency-Max (fCLK):

    80 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    524288 words

  • Number of Words Code:

    512000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

W25X40CVSNAG Frequently Asked Questions (FAQs)

  • The W25X40CVSNAG supports up to 100,000 erase cycles.
  • The W25X40CVSNAG uses a page-based programming and erasure mechanism, where each page is 256 bytes. The device can program and erase pages individually.
  • The WP# (Write Protect) pin is used to prevent accidental writes or erasures to the device. When the WP# pin is low, the device is write-protected.
  • The W25X40CVSNAG has a built-in power-on reset circuit that initializes the device to a known state after power-up.
  • The typical programming time for the W25X40CVSNAG is around 1.5 ms per page.
