W260A1B004L1 - Esterline

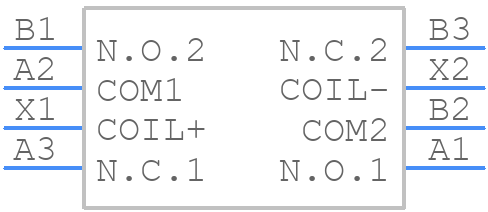

W260A1B004L1 Details

• Manufacturer Part Number:

  W260A1B004L1

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Esterline Technologies Corporation

• YTEOL:

  0

• Body Breadth:

  10.4 mm

• Body Height:

  10.4 mm

• Body Length or Diameter:

  20.6 mm

• Coil Current(DC)-Max:

  0.075 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  900 mW

• Coil Release Voltage(DC):

  0.5 V

• Coil Resistance:

  160 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  .3A@115VAC

• Contact Current(AC)-Max:

  0.3 A

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Rating R Load:

  2A@28VDC

• Contact Voltage(AC)-Max:

  115 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• JESD-609 Code:

  e0

• Mounting Feature:

  SOCKET MOUNT

• Operate Time:

  6 ms

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Physical Dimension:

  20.6mm x 10.4mm x 10.4mm

• Reference Standard:

  MIL-PRF-39016/6

• Relay Action:

  MOMENTARY

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  6 ms

• Sealing:

  CORROSION PROOF; HERMETICALLY SEALED

• Surface Mount:

  NO

• Terminal Finish:

  TIN LEAD

• Termination Type:

  SNAP ON
