W29C020CP90B - Winbond

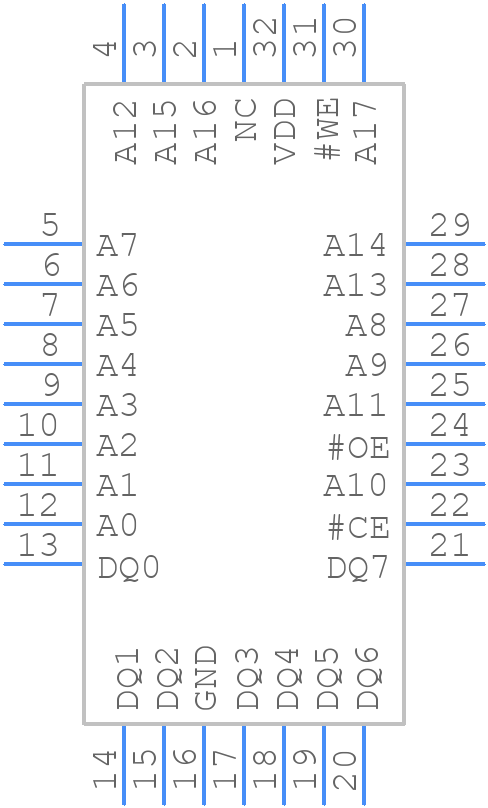

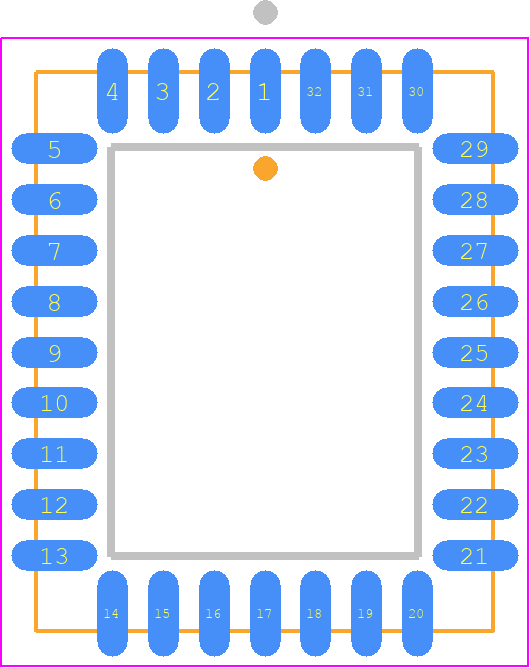

W29C020CP90B Details

• Manufacturer Part Number:

  W29C020CP90B

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFJ

• Package Description:

  PLASTIC, LCC-32

• Pin Count:

  32

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Winbond Electronics Corp

• YTEOL:

  0

• Access Time-Max:

  90 ns

• Additional Feature:

  HARDWARE AND SOFTWARE DATA PROTECTION; 20-YEARS DATA RETENTION

• Boot Block:

  BOTTOM/TOP

• Command User Interface:

  NO

• Data Polling:

  YES

• Data Retention Time-Min:

  20

• Endurance:

  10000 Write/Erase Cycles

• JESD-30 Code:

  R-PQCC-J32

• JESD-609 Code:

  e0

• Length:

  13.97 mm

• Memory Density:

  2097152 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Sectors/Size:

  1,1,1

• Number of Terminals:

  32

• Number of Words:

  262144 words

• Number of Words Code:

  256000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  256KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC32,.5X.6

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  5 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.56 mm

• Sector Size:

  8K,240K,8K

• Standby Current-Max:

  0.0001 A

• Supply Current-Max:

  0.05 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  11.43 mm

• Write Cycle Time-Max (tWC):

  10 ms
