W2F11A4708AT1F - Kyocera AVX

Description: CAPACITOR FEEDTHRU,0805 47pF 100V

Download W2F11A4708AT1F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

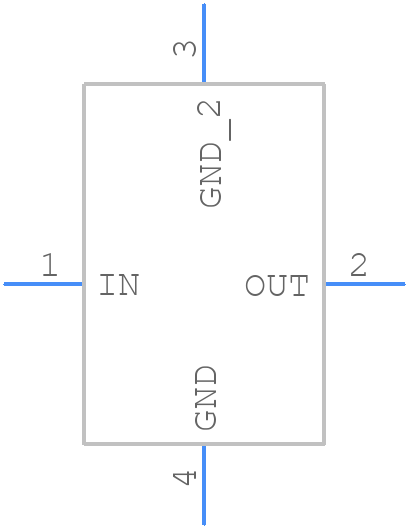

W2F11A4708AT1F - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints
W2F11A4708AT1F - Kyocera AVX PCB footprint - Other - Other - CAPF_W2F-4P
click to zoom
3D Models
W2F11A4708AT1F - Kyocera AVX - 3D model - Other - CAPF_W2F-4P
click to zoom

W2F11A4708AT1F Details

  • Manufacturer Part Number:

    W2F11A4708AT1F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7.09

  • Additional Feature:

    PLATED TERMINATION

  • Capacitance:

    47 µF

  • DC Resistance-Max:

    0.6 Ω

  • Filter Type:

    FEED THROUGH CAPACITOR

  • Height:

    1.14 mm

  • Insulation Resistance-Min:

    1000 MΩ

  • JESD-609 Code:

    e3

  • Length:

    2.01 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.3 A

  • Rated Voltage:

    100 V

  • Terminal Finish:

    TIN OVER NICKEL

  • Width:

    1.25 mm

W2F11A4708AT1F Frequently Asked Questions (FAQs)

  • The recommended land pattern for W2F11A4708AT1F is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, W2F11A4708AT1F is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the component's performance and lifespan may be affected at extreme temperatures.
  • W2F11A4708AT1F is designed to handle power cycling, but the component's lifespan may be affected by the number of power cycles. It's recommended to follow the manufacturer's guidelines for power cycling to ensure the component's reliability.
  • Yes, W2F11A4708AT1F is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
  • The recommended storage condition for W2F11A4708AT1F is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%.
