W2F15C2228AT1F - Kyocera AVX

Description: CAPACITOR FEEDTHRU,0805 2200pF 50V

Download W2F15C2228AT1F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

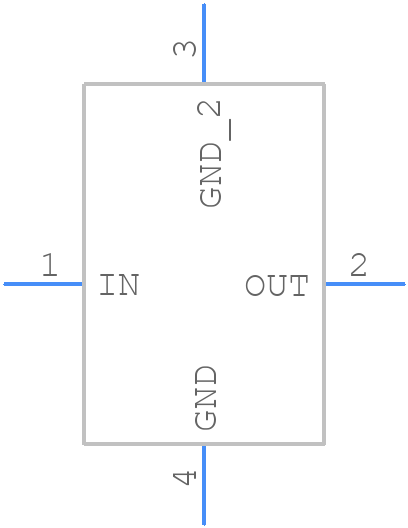

W2F15C2228AT1F - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints
W2F15C2228AT1F - Kyocera AVX PCB footprint - Other - Other - CAPF_W2F-4P
click to zoom
3D Models
W2F15C2228AT1F - Kyocera AVX - 3D model - Other - CAPF_W2F-4P
click to zoom

W2F15C2228AT1F Details

  • Manufacturer Part Number:

    W2F15C2228AT1F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.89

  • Additional Feature:

    PLATED TERMINATION

  • Capacitance:

    2200 µF

  • DC Resistance-Max:

    0.6 Ω

  • Filter Type:

    FEED THROUGH CAPACITOR

  • Height:

    1.14 mm

  • Insulation Resistance-Min:

    1000 MΩ

  • JESD-609 Code:

    e3

  • Length:

    2.01 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.3 A

  • Rated Voltage:

    50 V

  • Terminal Finish:

    TIN OVER NICKEL

  • Width:

    1.25 mm

W2F15C2228AT1F Frequently Asked Questions (FAQs)

  • The recommended land pattern for W2F15C2228AT1F is available in the Kyocera AVX Components' land pattern document, which can be found on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • To prevent damage, it is recommended to handle the component by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage. Additionally, avoid bending or flexing the component during assembly.
  • The maximum reflow temperature for W2F15C2228AT1F is 260°C, with a peak temperature of 250°C for a maximum of 10 seconds. It is essential to follow the recommended reflow profile to prevent damage to the component.
  • Yes, W2F15C2228AT1F is designed to withstand high-vibration environments. However, it is essential to ensure that the component is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • The moisture sensitivity level (MSL) of W2F15C2228AT1F is MSL 3, which means it can be exposed to a maximum of 168 hours in a humidity-controlled environment before assembly.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

W2F15C2228AT1F Overview

Use the download button to access the W2F15C2228AT1F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W2F15, or try a keyword search, such as Data Line Filters

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
