W2F15C4738AT1A - Kyocera AVX

Description: AVX - W2F15C4738AT1A - CAP, MLCC, X7R, 47NF, 50V, 0805

Download W2F15C4738AT1A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

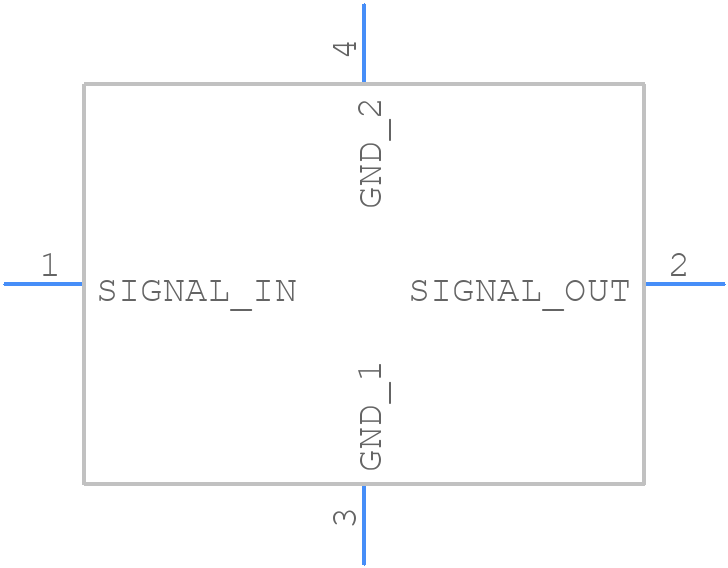

W2F15C4738AT1A - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints
W2F15C4738AT1A - Kyocera AVX PCB footprint - Other - Other - W2F15C4738AT1A-2
click to zoom

W2F15C4738AT1A Details

  • Manufacturer Part Number:

    W2F15C4738AT1A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.89

  • Additional Feature:

    PLATED TERMINATION

  • Capacitance:

    47000 µF

  • DC Resistance-Max:

    0.6 Ω

  • Filter Type:

    FEED THROUGH CAPACITOR

  • Height:

    1.14 mm

  • Insulation Resistance-Min:

    1000 MΩ

  • JESD-609 Code:

    e3

  • Length:

    2.01 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.3 A

  • Rated Voltage:

    50 V

  • Terminal Finish:

    TIN OVER NICKEL

  • Width:

    1.25 mm

W2F15C4738AT1A Frequently Asked Questions (FAQs)

  • The recommended land pattern for W2F15C4738AT1A is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, W2F15C4738AT1A is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the component's performance may degrade at extreme temperatures.
  • W2F15C4738AT1A is designed to handle power cycling, with a rating of 1000 cycles at 85°C/85% RH. However, the component's lifespan may be affected by extreme power cycling conditions.
  • Yes, W2F15C4738AT1A is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The MSL of W2F15C4738AT1A is 3, indicating that the component can withstand exposure to moisture for up to 168 hours at 30°C/60% RH.
