W2H15C22384T1F footprint, schematic symbol and 3D model by Kyocera AVX

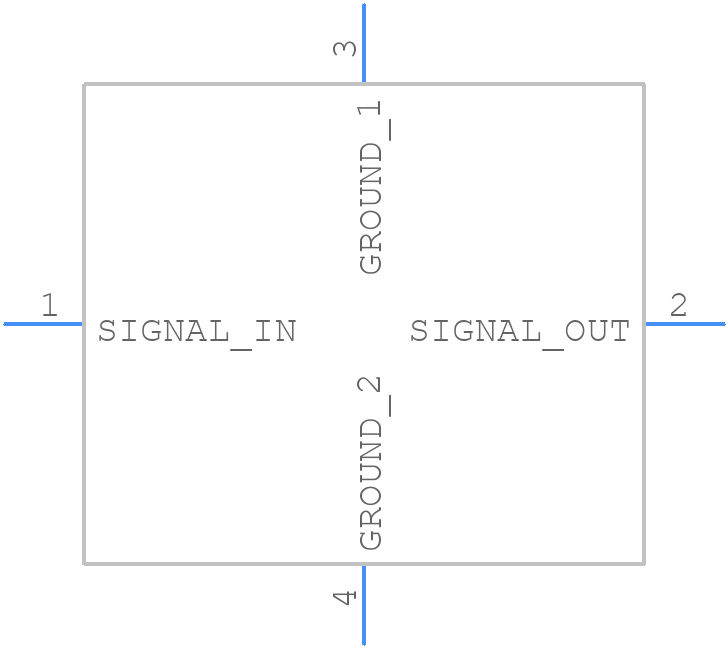

Symbol

click to zoom

PCB Footprints

W2H15C22384T1F - Kyocera AVX PCB footprint - Other - Other - W2H15C22384T1F-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for W2H15C22384T1F
Part Number W2H15C22384T1F
Manufacturer Kyocera AVX
Pin Count 4
Part Category Capacitor Polarised
Package Category Other
Footprint Name Other - W2H15C22384T1F-2
Released Date Jan 16, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W2H15C22384T1F Details

Manufacturer Part Number:
W2H15C22384T1F
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
EIA STD PACKAGE SIZE 0805, SMD, 4 PIN
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
14 Weeks
Manufacturer:
Kyocera AVX Components
YTEOL:
6.89
Additional Feature:
AEC-Q200
Capacitance:
22000 µF
DC Resistance-Max:
0.15 Ω
Filter Type:
FEED THROUGH CAPACITOR
Height:
1.14 mm
Insulation Resistance-Min:
1000 MΩ
JESD-609 Code:
e3
Length:
2.01 mm
Mounting Type:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
4
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Packing Method:
TR, EMBOSSED, 7 INCH
Rated Current:
1 A
Rated Voltage:
50 V
Screening Level:
AEC-Q200
Terminal Finish:
TIN OVER NICKEL
Width:
1.25 mm

W2H15C22384T1F Frequently Asked Questions (FAQs)

The recommended land pattern for W2H15C22384T1F can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
Yes, W2H15C22384T1F is rated for high-temperature applications up to 150°C. However, it's essential to follow the derating guidelines provided in the datasheet to ensure reliable operation and prevent overheating.
Yes, W2H15C22384T1F is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS directive and are compatible with lead-free soldering processes.
The typical ESL of W2H15C22384T1F is around 1.5nH. However, this value can vary depending on the specific application and PCB layout. It's recommended to consult with Kyocera AVX Components' application engineers for more detailed information.
Yes, W2H15C22384T1F is suitable for high-frequency applications up to 1GHz. However, it's essential to consider the component's self-resonant frequency, which is around 500MHz, and ensure that the application frequency is below this point to avoid resonance issues.

Trust Checks

Expert Contribution

System Verified

Community Approved

W2H15C22384T1F Overview

Use the download button to access the W2H15C22384T1F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like W2H15, or try a keyword search, such as Data Line Filters

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
