W30516TTRC footprint, schematic symbol and 3D model by Winslow

Symbol

click to zoom

PCB Footprints

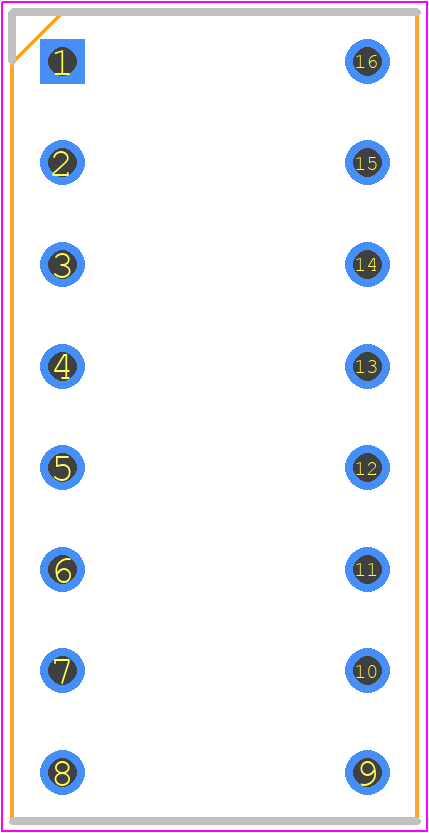

W30516TTRC - Winslow PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-16

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for W30516TTRC
Part Number W30516TTRC
Manufacturer Winslow
Pin Count 16
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-16
Released Date Oct 26, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W30516TTRC Details

Manufacturer Part Number:
W30516TTRC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Winslow Adaptics Ltd
Additional Feature:
STANDARD: UL 94V-0
Contact Finish Mating:
PURE TIN OVER NICKEL
Contact Finish Termination:
PURE TIN OVER NICKEL
Contact Material:
BRASS
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP16
Housing Material:
POLYBUTYLENE TEREPHTHALATE-POLYESTER
Number of Contacts:
16

W30516TTRC Frequently Asked Questions (FAQs)

The recommended storage temperature for W30516TTRC is -40°C to 125°C, as specified by the manufacturer.
Yes, the W30516TTRC is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
The typical lead time for W30516TTRC can vary depending on the supplier and the quantity ordered. However, it's usually around 6-12 weeks.
Yes, the W30516TTRC is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial control systems.
Yes, the W30516TTRC is compatible with lead-free soldering processes, making it suitable for modern manufacturing techniques.

Trust Checks

Expert Contribution

System Verified

Community Approved

W30516TTRC Overview

Use the download button to access the W30516TTRC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like W3051, or try a keyword search, such as Sockets and Chip Carriers
