W30520TRC - Winslow

Description: Winslow 2.54mm Pitch Vertical 20 Way, Through Hole Turned pin Open Frame IC Dip Socket, 5A

Download W30520TRC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
W30520TRC - Winslow - PCB symbol
click to zoom
PCB Footprints

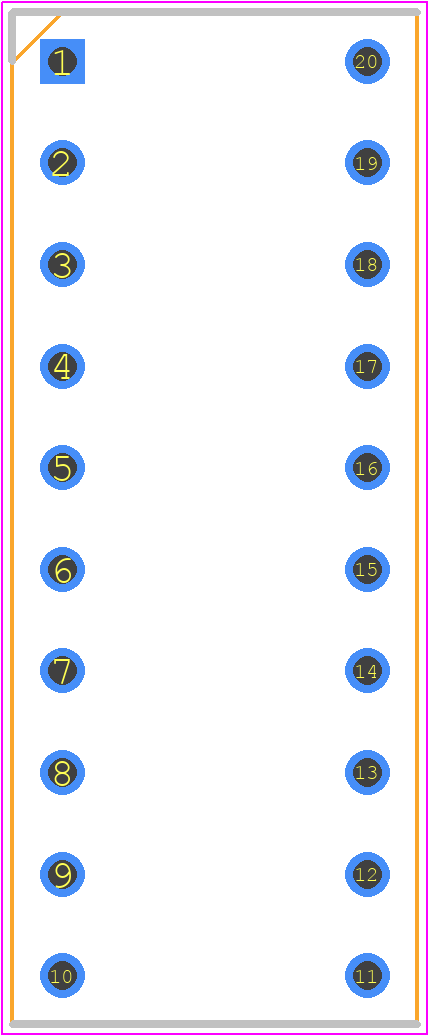

W30520TRC - Winslow PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - W30520TRC
click to zoom

W30520TRC Details

  • Manufacturer Part Number:

    W30520TRC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Winslow Adaptics Ltd

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    PURE TIN OVER NICKEL

  • Contact Material:

    BRASS

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP20

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • Number of Contacts:

    20
