W30524/3TRC - Winslow

Description: Winslow 2.54mm Pitch Vertical 24 Way, Through Hole Turned pin Open Frame IC Dip Socket, 5A

Download W30524/3TRC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
W30524/3TRC - Winslow - PCB symbol
click to zoom
PCB Footprints

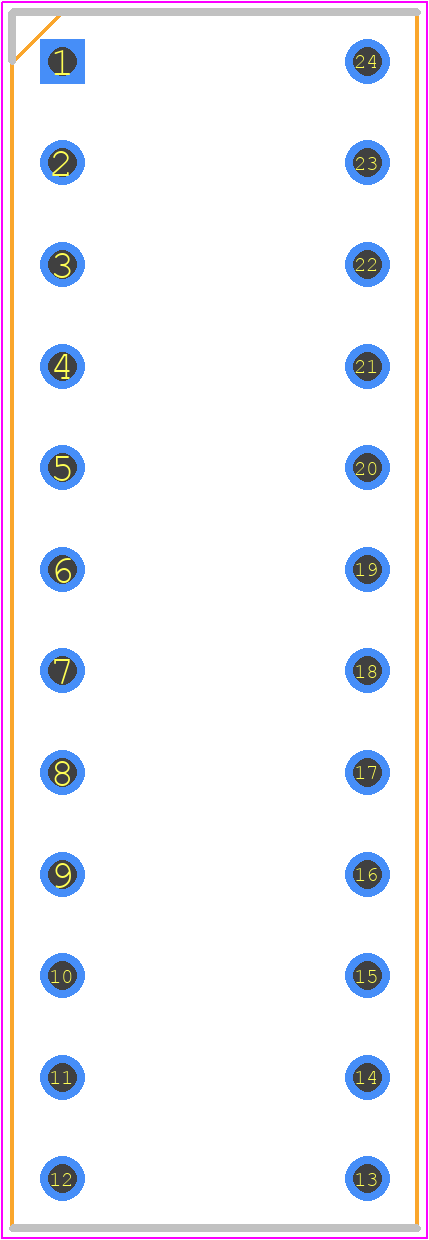

W30524/3TRC - Winslow PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - W30524/3TRC
click to zoom

W30524/3TRC Details

  • Manufacturer Part Number:

    W30524/3TRC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Winslow Adaptics Ltd

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    PURE TIN OVER NICKEL

  • Contact Material:

    BRASS

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP24

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • Number of Contacts:

    24

W30524/3TRC Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the W30524/3TRC is -40°C to 125°C, as per the manufacturer's guidelines.
  • Yes, the W30524/3TRC is designed to withstand high-vibration environments, making it suitable for applications in aerospace, defense, and industrial sectors.
  • The typical lead time for delivery of the W30524/3TRC is 8-12 weeks, depending on the quantity and availability of the component.
  • Yes, the W30524/3TRC is RoHS and REACH compliant, meeting the European Union's regulations for hazardous substances and chemical safety.
  • Yes, Winslow Adaptics Ltd offers customization options for the W30524/3TRC, including modifications to the component's electrical and mechanical characteristics.
