W30528/3TRC - Winslow

Description: Winslow 2.54mm Pitch Vertical 28 Way, Through Hole Turned pin Open Frame IC Dip Socket, 5A

Download W30528/3TRC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
W30528/3TRC - Winslow - PCB symbol
click to zoom
PCB Footprints

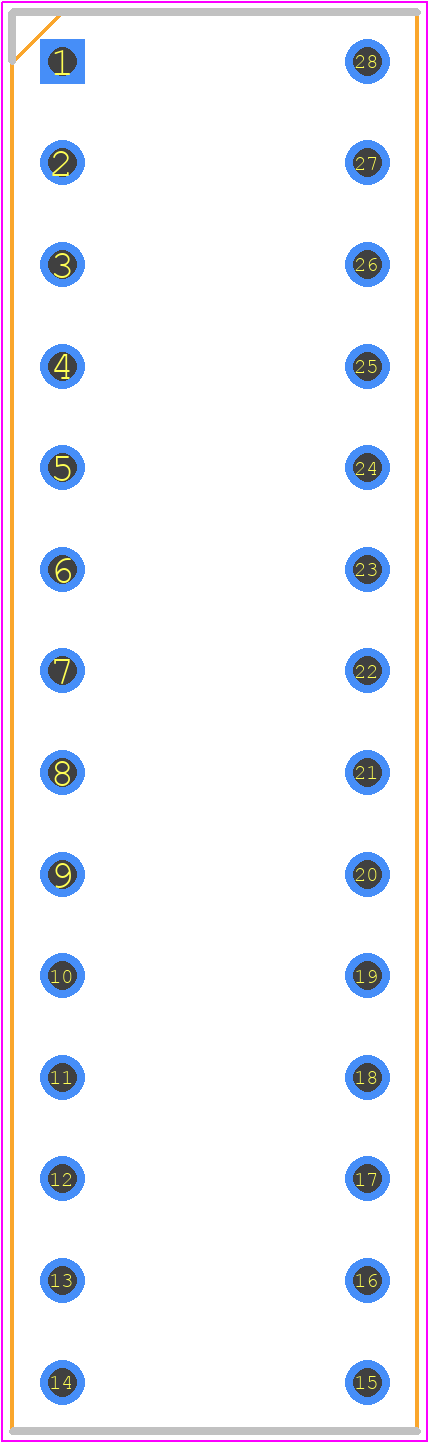

W30528/3TRC - Winslow PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - TRC
click to zoom

W30528/3TRC Details

  • Manufacturer Part Number:

    W30528/3TRC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Winslow Adaptics Ltd

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    Pure Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    BRASS

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • Number of Contacts:

    28
