W30540TRC footprint, schematic symbol and 3D model by Winslow

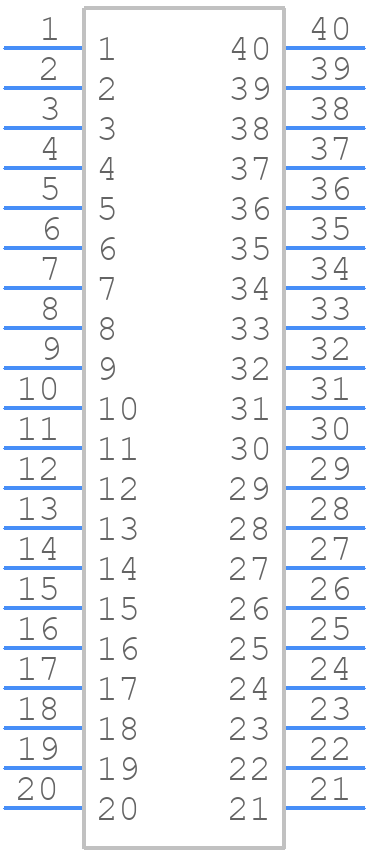

Symbol

click to zoom

PCB Footprints

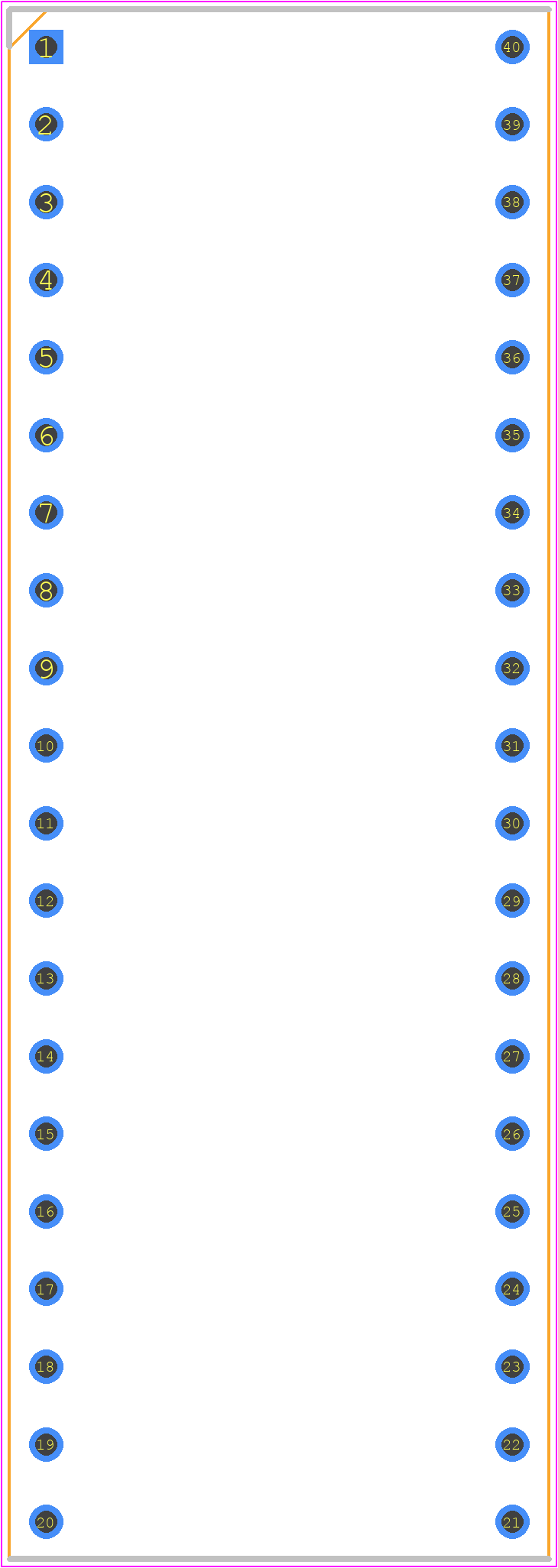

W30540TRC - Winslow PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - W30540TRC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for W30540TRC
Part Number W30540TRC
Manufacturer Winslow
Pin Count 40
Part Category Undefined or Miscellaneous
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - W30540TRC
Released Date Mar 21, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W30540TRC Details

Manufacturer Part Number:
W30540TRC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Winslow Adaptics Ltd
Additional Feature:
STANDARD: UL 94V-0
Contact Finish Mating:
GOLD OVER NICKEL
Contact Finish Termination:
PURE TIN OVER NICKEL
Contact Material:
BRASS
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP40
Housing Material:
POLYBUTYLENE TEREPHTHALATE-POLYESTER
Number of Contacts:
40

W30540TRC Frequently Asked Questions (FAQs)

The recommended storage temperature for W30540TRC is -40°C to 100°C, as specified by the manufacturer.
Yes, the W30540TRC is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
The typical lead time for W30540TRC can vary depending on the supplier and quantity, but it's usually around 4-6 weeks. It's best to check with the supplier or manufacturer for the most up-to-date information.
The W30540TRC is designed to withstand moderate vibration, but it's essential to consult the manufacturer's guidelines and perform thorough testing to ensure its reliability in high-vibration environments.
While the W30540TRC is designed to operate in a wide temperature range, it's crucial to consult the manufacturer's guidelines and perform environmental testing to ensure its reliability in harsh environments.

Trust Checks

Expert Contribution

System Verified

Community Approved

W30540TRC Overview

Use the download button to access the W30540TRC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like W3054, or try a keyword search, such as Sockets and Chip Carriers
