W35532TRC - Winslow

Description: Winslow 2.54mm 32 Way 1 Row Straight Through Hole Female Socket Strip

Download W35532TRC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

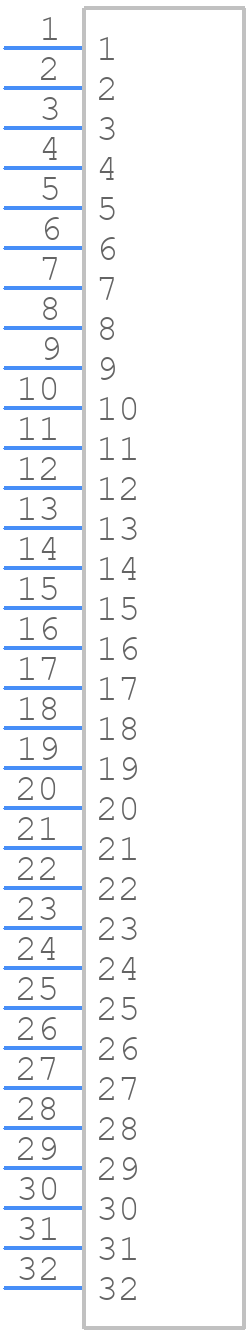

W35532TRC - Winslow - PCB symbol
click to zoom
PCB Footprints

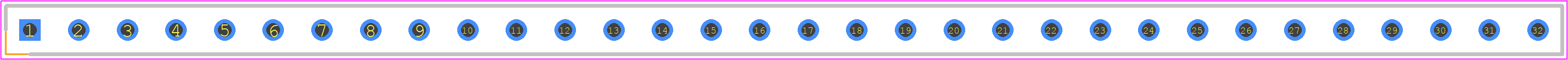

W35532TRC - Winslow PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - W35532TRC
click to zoom
3D Models
W35532TRC - Winslow - 3D model - Header, Receptacle - Straight PTH Box - W35532TRC
click to zoom

W35532TRC Details

  • Manufacturer Part Number:

    W35532TRC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Winslow Adaptics Ltd

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.161 inch

  • Body Length:

    3.2 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    BRASS

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    5 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP32

  • Housing Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    1010 Ω

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -65 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

W35532TRC Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the W35532TRC is -40°C to 125°C.
  • Yes, the W35532TRC is designed to withstand high-vibration environments, making it suitable for use in aerospace, defense, and industrial applications.
  • The typical lead time for delivery of the W35532TRC is 8-12 weeks, but this may vary depending on the quantity and specific requirements of the order.
  • Yes, the W35532TRC is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
  • The maximum operating frequency of the W35532TRC is 3.2 GHz, making it suitable for use in high-frequency applications such as radar, microwave, and satellite communications.
