W3F15C2238AT1F footprint, schematic symbol and 3D model by Kyocera AVX

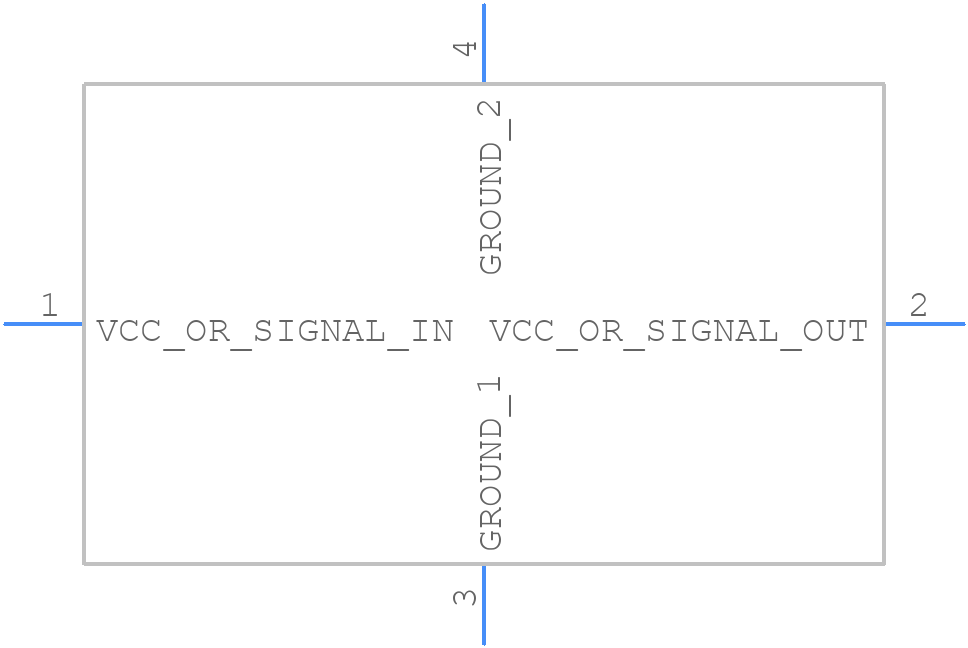

Symbol

click to zoom

PCB Footprints

W3F15C2238AT1F - Kyocera AVX PCB footprint - Other - Other - W3F15C2238AT1F-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for W3F15C2238AT1F
Part Number W3F15C2238AT1F
Manufacturer Kyocera AVX
Pin Count 4
Part Category Capacitor
Package Category Other
Footprint Name Other - W3F15C2238AT1F-2
Released Date Feb 9, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W3F15C2238AT1F Details

Manufacturer Part Number:
W3F15C2238AT1F
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
14 Weeks
Manufacturer:
Kyocera AVX Components
YTEOL:
6.79
Additional Feature:
PLATED TERMINATION
Capacitance:
22000 µF
DC Resistance-Max:
0.6 Ω
Filter Type:
FEED THROUGH CAPACITOR
Height:
1.27 mm
Insulation Resistance-Min:
1000 MΩ
JESD-609 Code:
e3
Length:
3.2 mm
Mounting Type:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Packing Method:
TAPE AND REEL
Rated Current:
0.3 A
Rated Voltage:
50 V
Terminal Finish:
TIN OVER NICKEL
Width:
1.6 mm

W3F15C2238AT1F Frequently Asked Questions (FAQs)

The recommended land pattern for W3F15C2238AT1F is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
To handle thermal management, ensure good airflow around the component, use a thermal interface material (TIM) between the component and the heat sink, and design a heat sink with a thermal conductivity of at least 1 W/m-K.
The maximum operating temperature range for W3F15C2238AT1F is -55°C to +125°C, with a derating of 1.25% per °C above 85°C.
To ensure reliability in high-vibration environments, use a secure mounting method, such as a screw or adhesive, and consider using a vibration-dampening material, like a silicone adhesive, between the component and the PCB.
The recommended soldering profile for W3F15C2238AT1F is a peak temperature of 240°C, with a dwell time of 30-60 seconds above 217°C, and a cooling rate of 4°C/second maximum.

Trust Checks

Expert Contribution

System Verified

Community Approved

W3F15C2238AT1F Overview

Use the download button to access the W3F15C2238AT1F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like W3F15, or try a keyword search, such as Data Line Filters

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
