W3L1ZC105MAT3A - Kyocera AVX

Description: Capacitor Arrays & Networks 1uF 10V 20%

Download W3L1ZC105MAT3A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

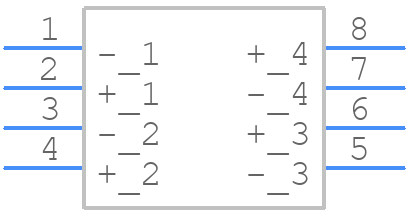

Symbol
W3L1ZC105MAT3A - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints
W3L1ZC105MAT3A - Kyocera AVX PCB footprint - Other - Other - W3L1ZC105MAT3A-1
click to zoom
3D Models
W3L1ZC105MAT3A - Kyocera AVX - 3D model - Other - W3L1ZC105MAT3A-1
click to zoom

W3L1ZC105MAT3A Details

  • Manufacturer Part Number:

    W3L1ZC105MAT3A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.45

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    8.3

  • Capacitance:

    1 µF

  • Capacitor Type:

    ARRAY/NETWORK CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    0.95 mm

  • JESD-609 Code:

    e2

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Network Type:

    ISOLATED C NETWORK

  • Number of Elements:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Code:

    CHIP

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 13 INCH

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Seated Height-Max:

    0.95 mm

  • Size Code:

    0612

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin/Nickel (Sn/Ni)

  • Terminal Pitch:

    0.8 mm

  • Terminal Shape:

    WRAPAROUND

  • Width:

    3.2 mm

W3L1ZC105MAT3A Frequently Asked Questions (FAQs)

  • The recommended land pattern for W3L1ZC105MAT3A can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the datasheet specifies an operating temperature range of -55°C to +125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Engineers should consult with Kyocera AVX Components' application notes or contact their technical support for guidance on using W3L1ZC105MAT3A in high-temperature environments.
  • The datasheet provides limited information on the component's high-frequency behavior. Engineers should consult with Kyocera AVX Components' application notes or contact their technical support to obtain more information on the component's impedance, insertion loss, and other high-frequency characteristics.
  • Yes, W3L1ZC105MAT3A is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering processes. However, engineers should follow the recommended soldering profiles and procedures to ensure reliable assembly.
  • To prevent damage and ensure reliability, engineers should follow the recommended storage and handling procedures outlined in the Kyocera AVX Components' documentation or industry standards such as IPC-J-STD-033. This includes storing the components in a dry, cool place, away from direct sunlight, and handling them with anti-static precautions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

W3L1ZC105MAT3A Overview

Use the download button to access the W3L1ZC105MAT3A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W3L1Z, or try a keyword search, such as Array/Network Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
