W5300 footprint, schematic symbol and 3D model by WIZnet Inc

Symbol

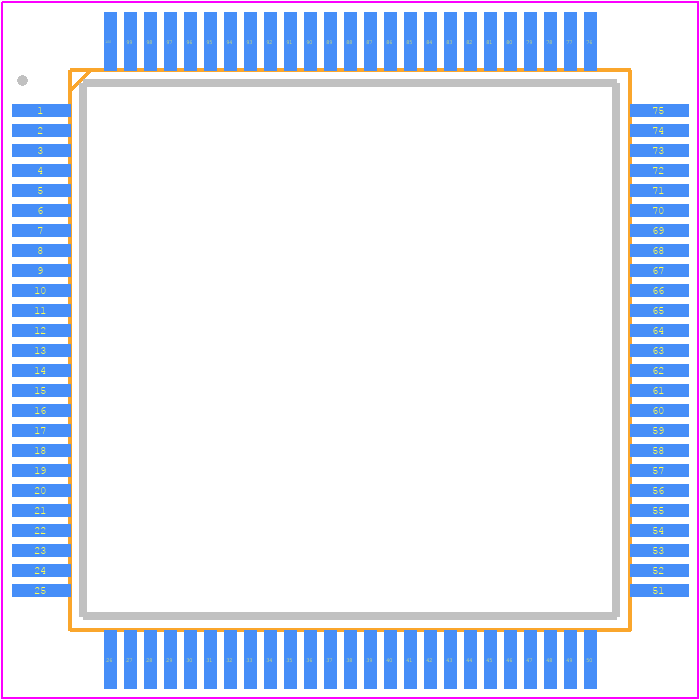

PCB Footprints

3D Models

W5300 Details

The W5300 can open up to 8 sockets simultaneously, but it's recommended to use 4-6 sockets for stable operation.
The W5300 has a built-in timeout feature. You can set the timeout value using the `SET_SIMR` command. The timeout value ranges from 0x01 to 0xFF, where 0x01 is approximately 0.5 seconds and 0xFF is approximately 255 seconds.
The W5300 has 16KB of TX buffer and 16KB of RX buffer. However, it's recommended to use a maximum of 8KB for TX and RX buffers to ensure stable operation.
You can implement a web server using the W5300 by creating a TCP socket and listening for incoming connections. You can then use the `SEND` and `RECV` commands to send and receive HTTP requests and responses.
Yes, the W5300 can be used with other microcontrollers, such as AVR, PIC, or ARM-based microcontrollers. However, you may need to modify the firmware and pin connections accordingly.

Expert Contribution

System Verified

Community Approved

Use the download button to access the W5300 schematic symbol, PCB footprint, and 3D model.
