AUTO/SELF REFRESH; IT ALSO REQUIRES 1.5V NOMINAL SUPPLY
Clock Frequency-Max (fCLK):
933 MHz
I/O Type:
COMMON
Interleaved Burst Length:
8
JESD-30 Code:
R-PBGA-B96
Length:
13 mm
Memory Density:
4294967296 bit
Memory IC Type:
DDR3L DRAM
Memory Width:
16
Number of Functions:
1
Number of Ports:
1
Number of Terminals:
96
Number of Words:
268435456 words
Number of Words Code:
256000000
Operating Mode:
SYNCHRONOUS
Operating Temperature-Max:
95 °C
Operating Temperature-Min:
-40 °C
Organization:
256MX16
Output Characteristics:
3-STATE
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA96,9X16,32
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Refresh Cycles:
8192
Seated Height-Max:
1 mm
Self Refresh:
YES
Sequential Burst Length:
8
Standby Current-Max:
0.033 A
Supply Current-Max:
0.121 mA
Supply Voltage-Max (Vsup):
1.45 V
Supply Voltage-Min (Vsup):
1.283 V
Supply Voltage-Nom (Vsup):
1.35 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
7.5 mm
W634GU6RB-11 Frequently Asked Questions (FAQs)
The recommended operating temperature range for the W634GU6RB-11 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 125°C.
The power-up sequence for the W634GU6RB-11 is critical to ensure proper operation. It's recommended to power up the VCC supply before the VPP supply, and the VCC supply should be stable before applying the clock signal. Additionally, the VPP supply should be turned on after the VCC supply has reached its stable state.
The maximum clock frequency supported by the W634GU6RB-11 is 133 MHz, as specified in the datasheet. However, it's essential to note that the actual clock frequency may vary depending on the system design and operating conditions.
The W634GU6RB-11 has a built-in write protection mechanism that can be implemented using the WP# pin. When the WP# pin is low, the device is in write-protect mode, and any write operations will be ignored. To enable write operations, the WP# pin should be set high.
The typical programming time for the W634GU6RB-11 varies depending on the programming method and the size of the data being programmed. However, according to the datasheet, the typical programming time is around 10-15 seconds for a 64-Kbyte block.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W634GU6RB-11 Overview

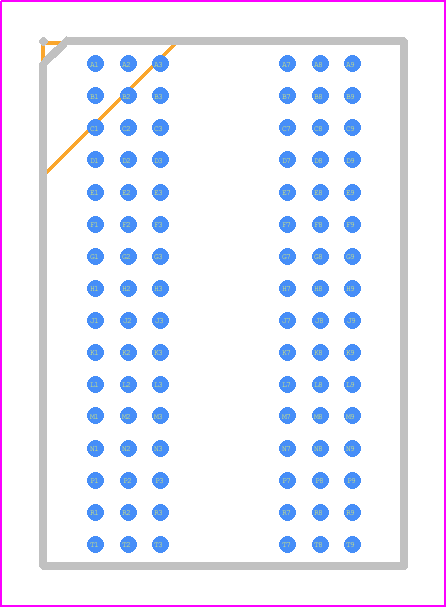

Use the download button to access the W634GU6RB-11 schematic symbol, PCB footprint, and 3D model.
