W78E054DDG - Nuvoton

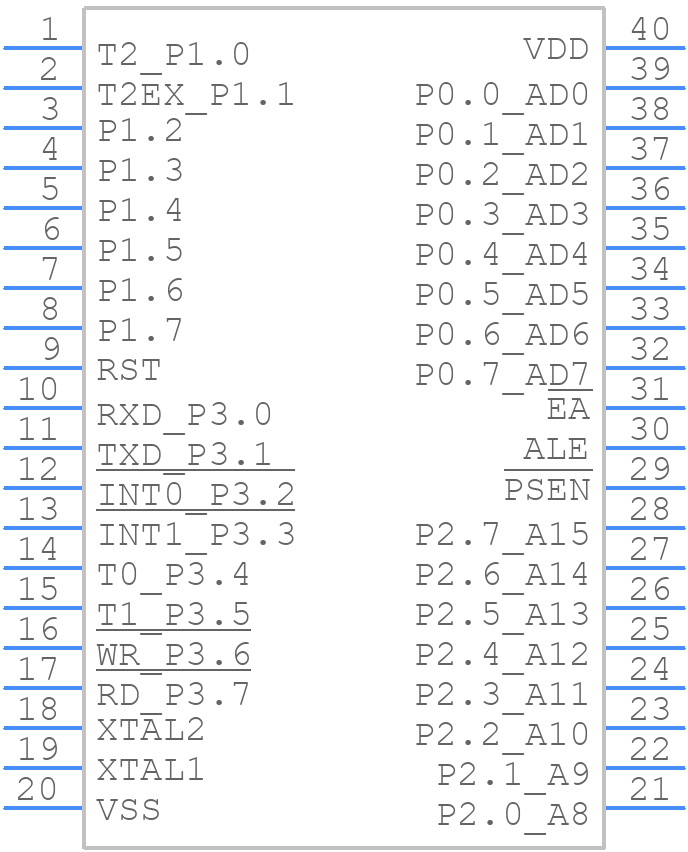

W78E054DDG Details

• Manufacturer Part Number:

  W78E054DDG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

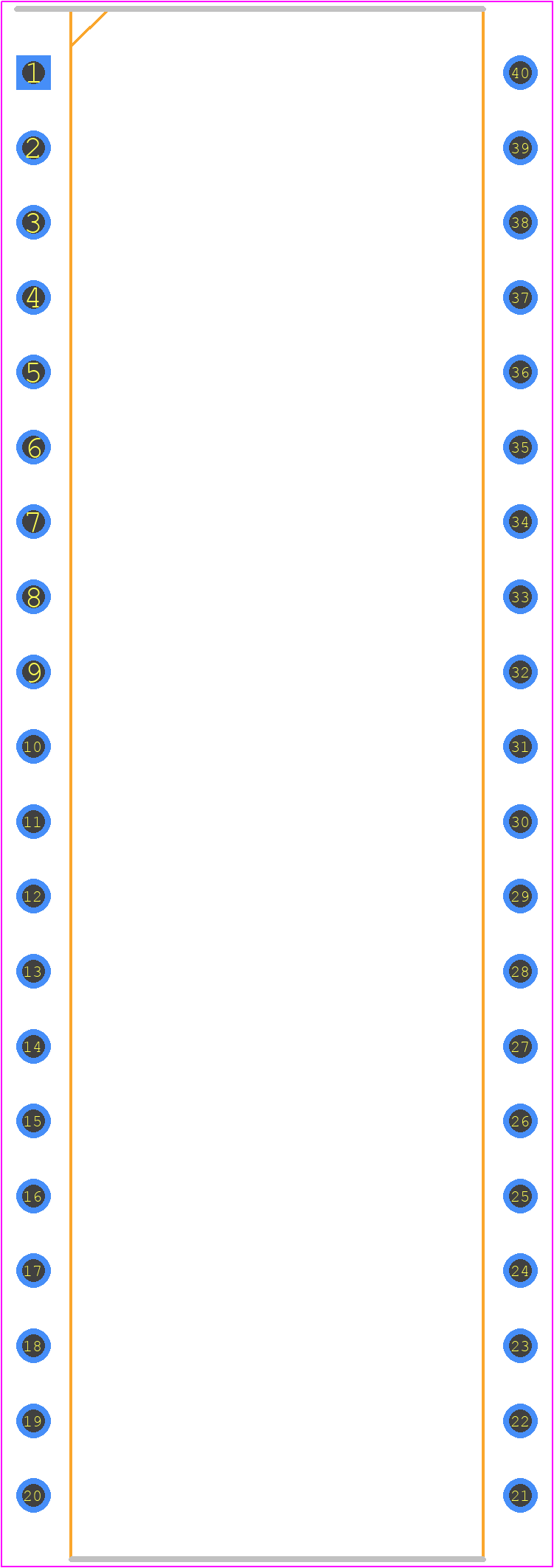

• Package Description:

  DIP-40

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Nuvoton Technology Corp

• YTEOL:

  0

• Has ADC:

  NO

• Additional Feature:

  ALSO OPERATES AT 10 MHZ AT 2.4V

• Address Bus Width:

  16

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  8052

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  8

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDIP-T40

• Length:

  52.2 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  4

• Number of I/O Lines:

  32

• Number of Serial I/Os:

  1

• Number of Terminals:

  40

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP40,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• RAM (bytes):

  256

• RAM (words):

  256

• ROM (words):

  16384

• ROM Programmability:

  FLASH

• Seated Height-Max:

  5.33 mm

• Speed:

  40 MHz

• Supply Current-Max:

  16 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  15.24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
