- Part Number W78E058B40DL
- Manufacturer Nuvoton
- Pin Count 40
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

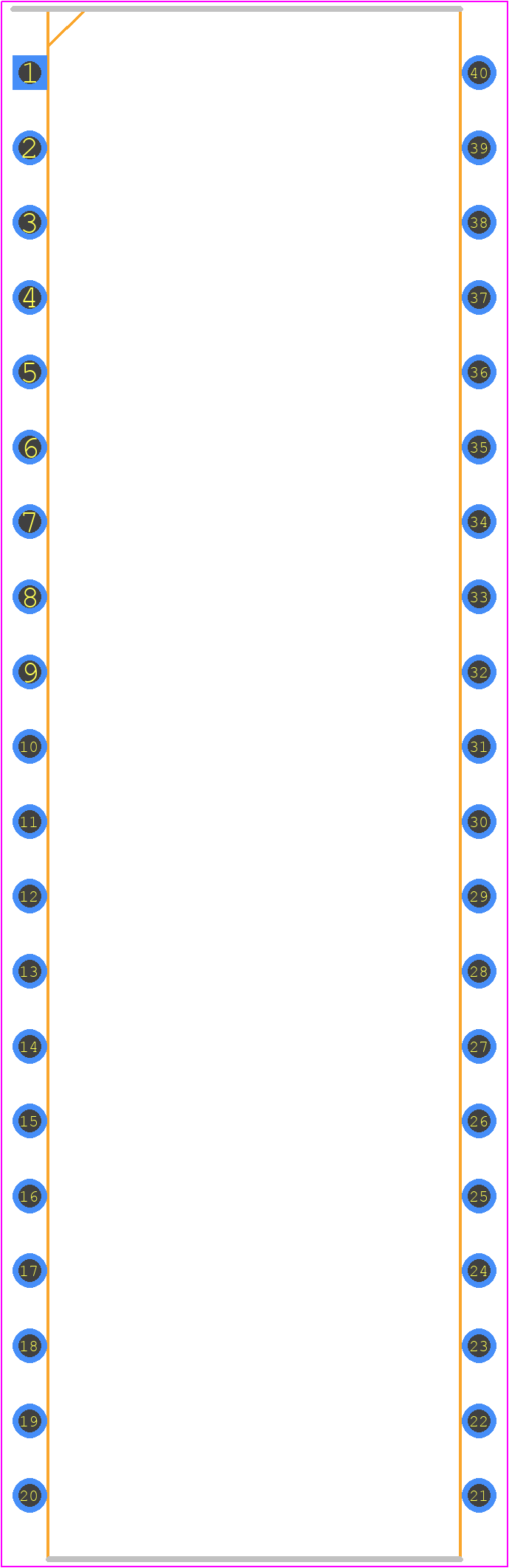

- Footprint Name Dual-In-Line Packages - 40 pin dip
- Released Date May 28, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
W78E058B40DL Details
-
Manufacturer Part Number:
W78E058B40DL
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
DIP-40
-
Pin Count:
40
-
HTS Code:
8542.31.00.15
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
0
-
Bit Size:
8
-
CPU Family:
8051
W78E058B40DL Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for W78E058B40DL is -40°C to 85°C.
-
The clock source for W78E058B40DL can be configured using the Clock Control Register (CKCON). The clock source can be set to either the internal RC oscillator, external crystal oscillator, or external clock input.
-
The maximum frequency for the UART baud rate in W78E058B40DL is 115.2 kbps.
-
The watchdog timer in W78E058B40DL can be implemented using the Watchdog Timer Control Register (WDTC). The watchdog timer can be enabled or disabled, and the timeout period can be set using the WDTC register.
-
The power consumption of W78E058B40DL in sleep mode is typically around 10 μA, depending on the specific sleep mode and configuration.
Trust Checks
Community Provided
System Verified
Community Approved
W78E058B40DL Overview

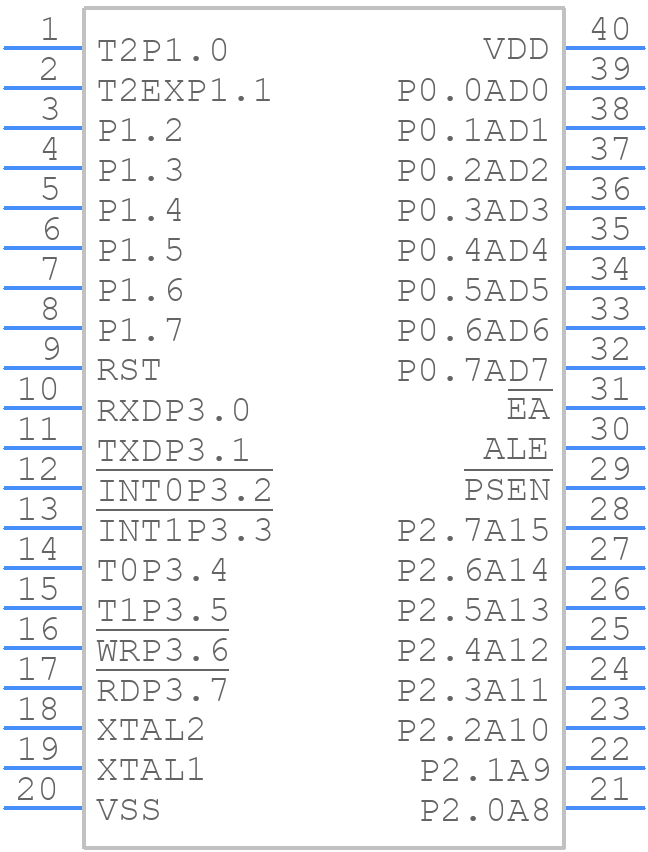

Use the download button to access the W78E058B40DL schematic symbol, PCB footprint, and 3D model.
