- Part Number W9300
- Manufacturer Winslow
- Pin Count 20
- Part Category Connector
- Package Category Other

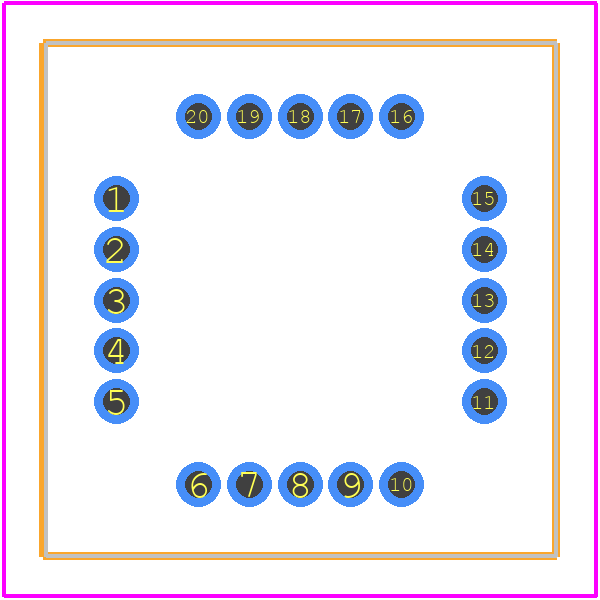

- Footprint Name Other - W9300-3
- Released Date May 12, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
W9300 Details
-
Manufacturer Part Number:
W9300
-
Pbfree Code:
No
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Winslow Adaptics Ltd
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Material:
NOT SPECIFIED
-
Device Socket Type:
IC SOCKET
-
Device Type Used On:
PLCC20
-
Number of Contacts:
20
Trust Checks
Expert Contribution
System Verified
Community Approved
W9300 Overview

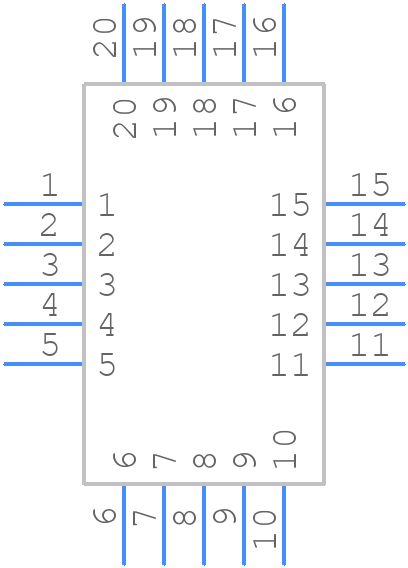

Use the download button to access the W9300 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Sockets and Chip Carriers
