W9322-ZC160 - Winslow

Description: Winslow Right Angle SMT 1.27mm Pitch IC Socket Adapter, 20 Pin Male PLCC to 20 Pin Male PLCC

Download W9322-ZC160 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

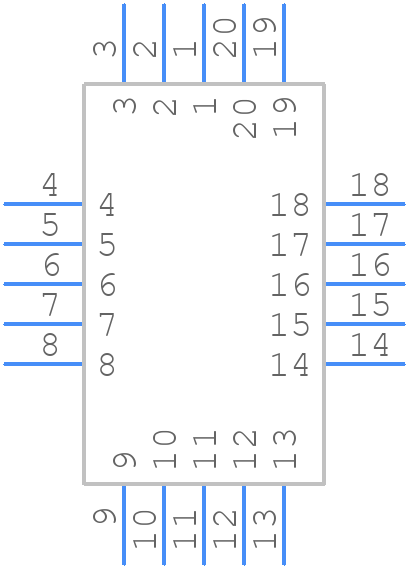

W9322-ZC160 - Winslow - PCB symbol
click to zoom
PCB Footprints

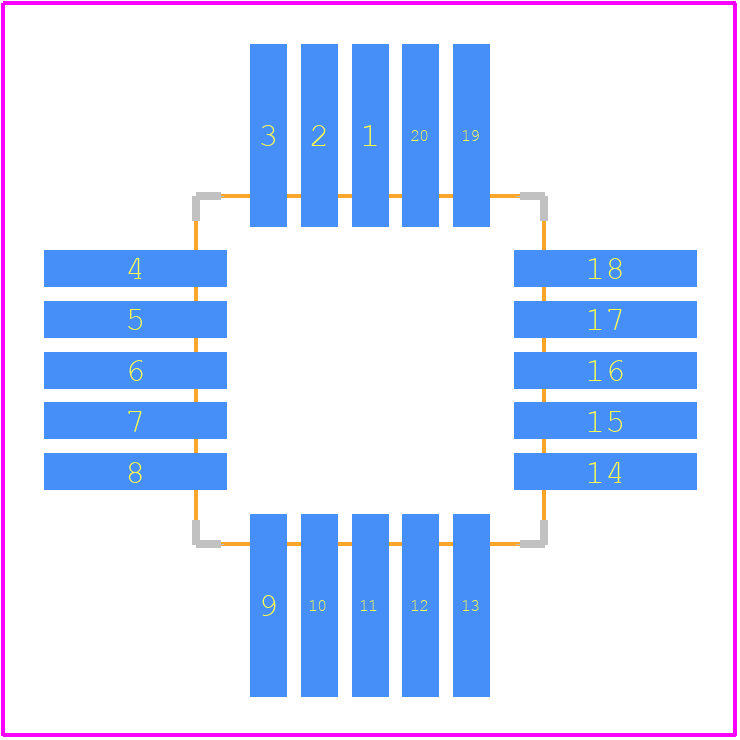

W9322-ZC160 - Winslow PCB footprint - Other - Other - W9322-ZC160-1
click to zoom
3D Models
W9322-ZC160 - Winslow - 3D model - Other - W9322-ZC160-1
click to zoom

W9322-ZC160 Details

  • Manufacturer Part Number:

    W9322-ZC160

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Winslow Adaptics Ltd

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC20

  • Number of Contacts:

    20

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

W9322-ZC160 Overview

Use the download button to access the W9322-ZC160 schematic symbol, PCB footprint, and 3D model.
