W9531RC - Winslow

Description: Winslow Straight Through Hole Mount 0.65 mm, 2.54 mm Pitch IC Socket Adapter, 28 Pin Female SOP to 28 Pin Male DIP

Download W9531RC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W9531RC model

Email notifications will be applied after download.

Send part feedback

Symbol

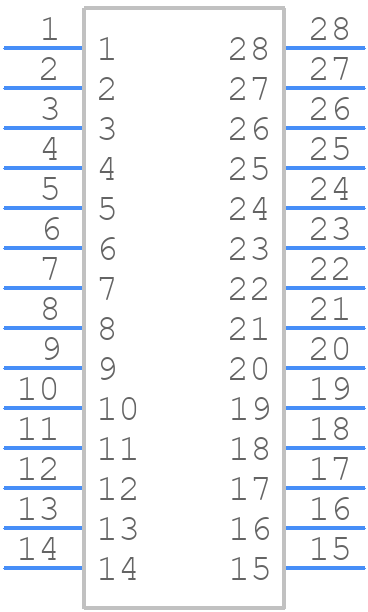

W9531RC - Winslow - PCB symbol

PCB Footprints

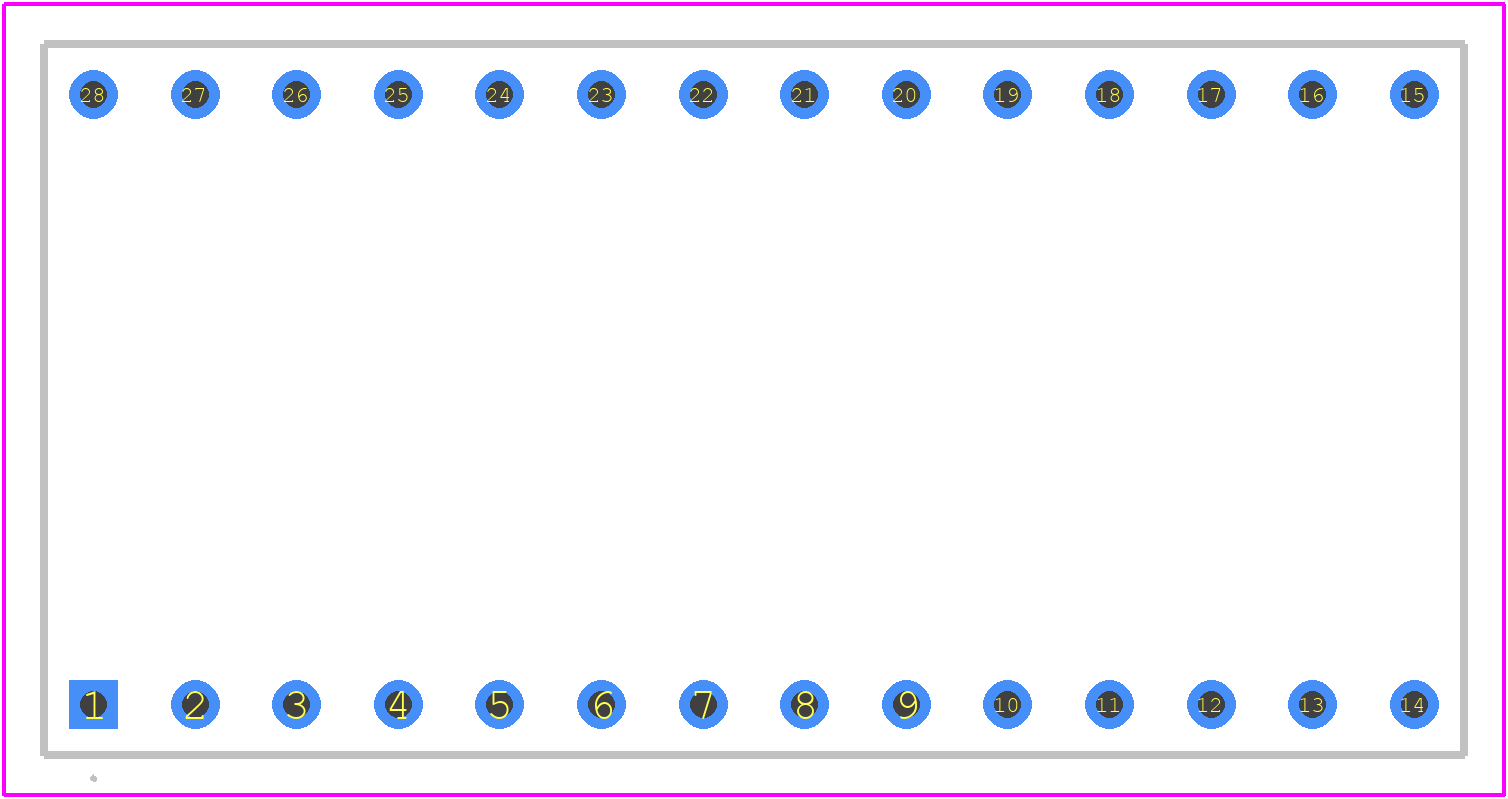

W9531RC - Winslow PCB footprint - Other - Other - W9531RC-3

3D Models

W9531RC - Winslow - 3D model - Other - W9531RC-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for W9531RC
Part Number W9531RC
Manufacturer Winslow
Pin Count 28
Part Category Connector
Package Category Other
Footprint Name Other - W9531RC-3
Released Date Oct 5, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W9531RC Details

Manufacturer Part Number:
W9531RC
Manufacturer:
Winslow Adaptics Ltd

Trust Checks

Expert Contribution

System Verified

Community Approved

W9531RC Overview

Use the download button to access the W9531RC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like W9531, or try a keyword search, such as DRAMs
