W9581RC - Winslow

Description: Winslow Straight Through Hole Mount 0.65 mm, 2.54 mm Pitch IC Socket Adapter, 16 Pin Female SOP to 16 Pin Male DIP

Download W9581RC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W9581RC model

Email notifications will be applied after download.

Send part feedback

Symbol

W9581RC - Winslow - PCB symbol

PCB Footprints

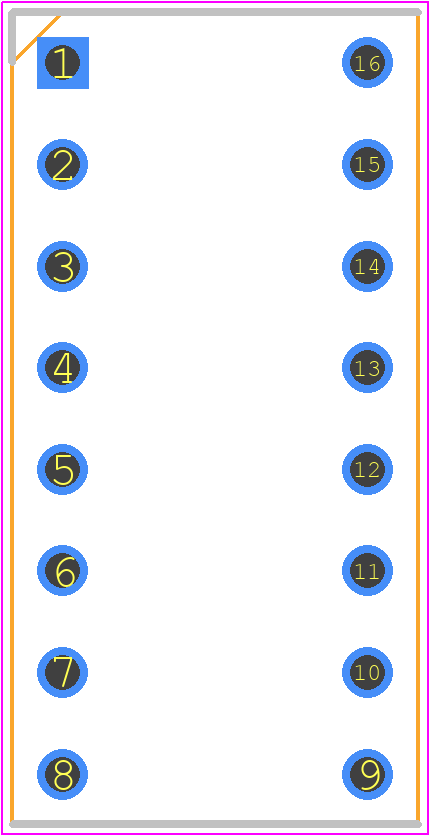

W9581RC - Winslow PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - dip-16--

Datasheet Download Datasheet
Stock & Prices Price & Stock for W9581RC
Part Number W9581RC
Manufacturer Winslow
Pin Count 16
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - dip-16--
Released Date Apr 30, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W9581RC Details

Manufacturer Part Number:
W9581RC
Manufacturer:
Winslow Adaptics Ltd

Trust Checks

Expert Contribution

System Verified

Community Approved

W9581RC Overview

Use the download button to access the W9581RC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like W9581, or try a keyword search, such as DRAMs
