WBL2UEEGQR05SILPWR - E-Switch

Description: Pushbutton Switches Illuminated, Right Angle Pushbutton Switch, 0.3A 30VDC, 2 pole, Latching, Green LED, Power Symbol Cap

Download WBL2UEEGQR05SILPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

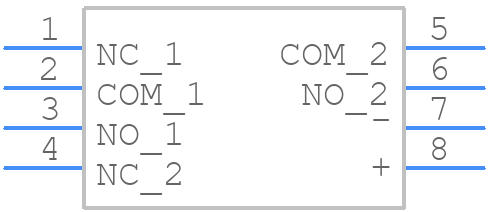

WBL2UEEGQR05SILPWR - E-Switch - PCB symbol
click to zoom
PCB Footprints

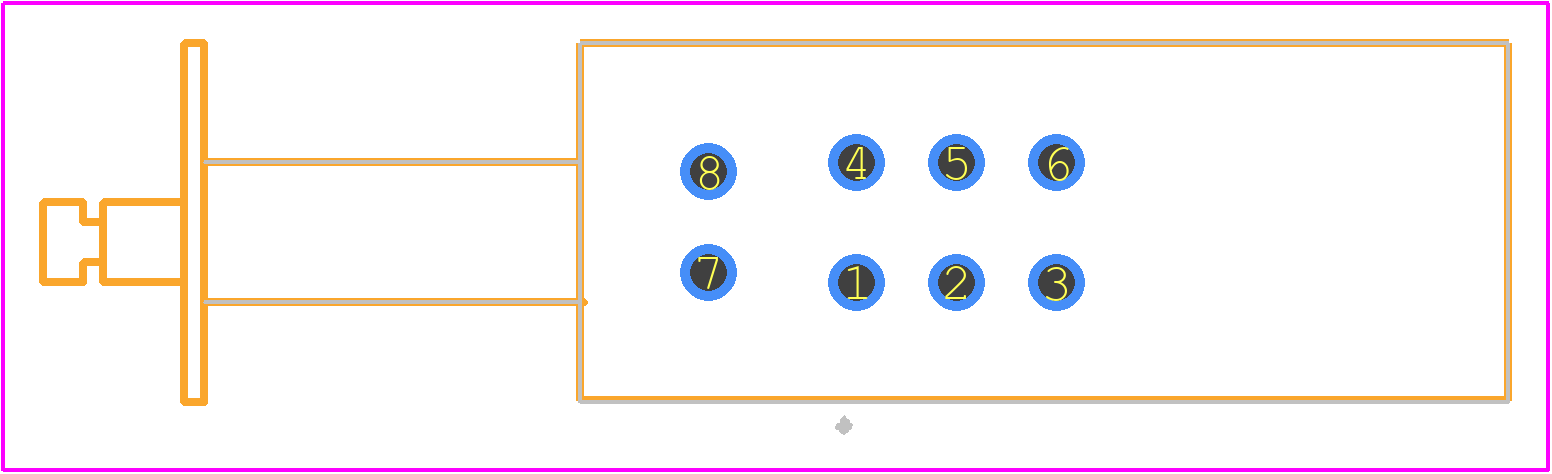

WBL2UEEGQR05SILPWR - E-Switch PCB footprint - Other - Other - WBL2UEEGQR05SILPWR-1
click to zoom
3D Models
WBL2UEEGQR05SILPWR - E-Switch - 3D model - Other - WBL2UEEGQR05SILPWR-1
click to zoom

WBL2UEEGQR05SILPWR Details

  • Manufacturer Part Number:

    WBL2UEEGQR05SILPWR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.33

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    8

  • Switch Type:

    PUSHBUTTON SWITCH

WBL2UEEGQR05SILPWR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the WBL2UEEGQR05SILPWR is -20°C to 85°C, as per the manufacturer's guidelines.
  • Yes, the WBL2UEEGQR05SILPWR is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The typical actuation force required for the WBL2UEEGQR05SILPWR is around 1.5 N (newtons), but this may vary depending on the specific application and usage.
  • Yes, the WBL2UEEGQR05SILPWR is designed to withstand high-vibration and high-shock environments, making it suitable for industrial, automotive, and other demanding applications.
  • Yes, the WBL2UEEGQR05SILPWR is available in various termination options, including through-hole, surface-mount, and wire-lead configurations, to accommodate different PCB designs and assembly requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WBL2UEEGQR05SILPWR Overview

Use the download button to access the WBL2UEEGQR05SILPWR schematic symbol, PCB footprint, and 3D model.
