WBL2UEERBQR05CLR - E-Switch

Description: PUSHBUTTON, 300mA, 30VDC DPDT, On-On Through Hole, Right Angle

Download WBL2UEERBQR05CLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

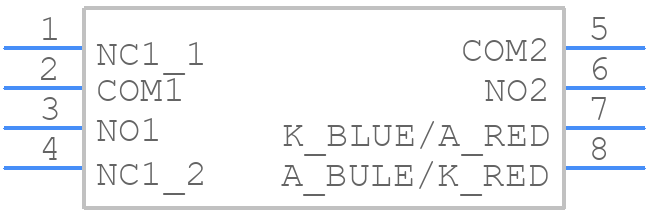

Symbol
WBL2UEERBQR05CLR - E-Switch - PCB symbol
click to zoom

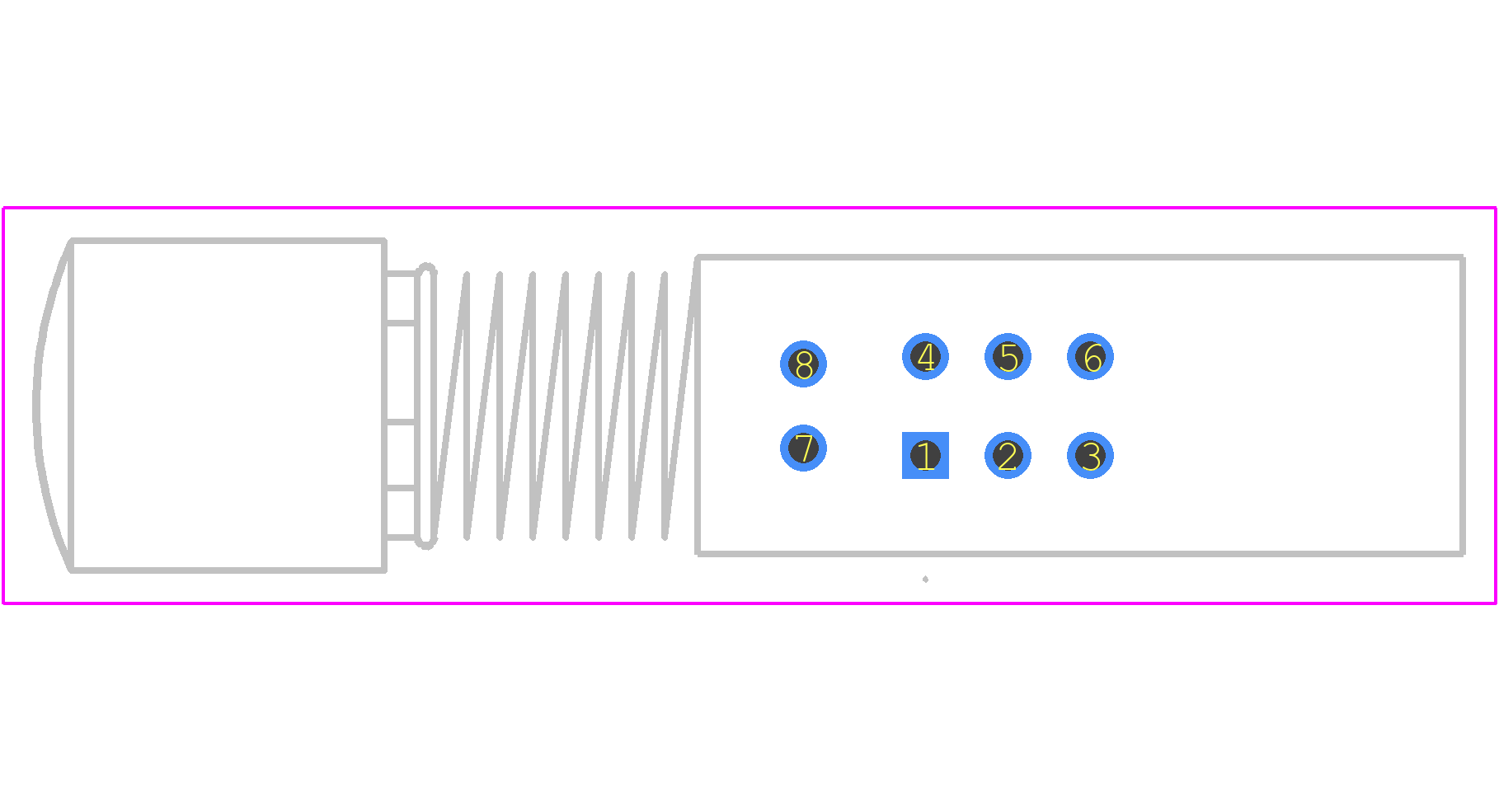

PCB Footprints
WBL2UEERBQR05CLR - E-Switch PCB footprint - Other - Other - WBL2UEERBQR05CLR-2
click to zoom

WBL2UEERBQR05CLR Details

  • Manufacturer Part Number:

    WBL2UEERBQR05CLR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.33

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    8.2

  • Switch Type:

    PUSHBUTTON SWITCH

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WBL2UEERBQR05CLR Overview

Use the download button to access the WBL2UEERBQR05CLR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like WBL2U, or try a keyword search, such as Pushbutton Switches
