Part Image

WBL2UOAGQR05CLR - E-Switch

Description: PUSHBUTTON, 300mA, 30VDC DPDT, On-(On) Through Hole, Right Angle

Download WBL2UOAGQR05CLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

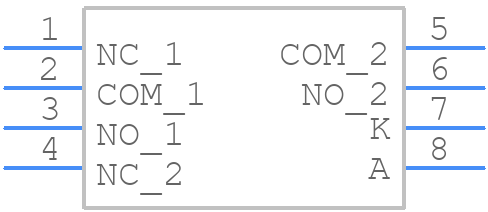

Symbol
WBL2UOAGQR05CLR - E-Switch - PCB symbol
click to zoom

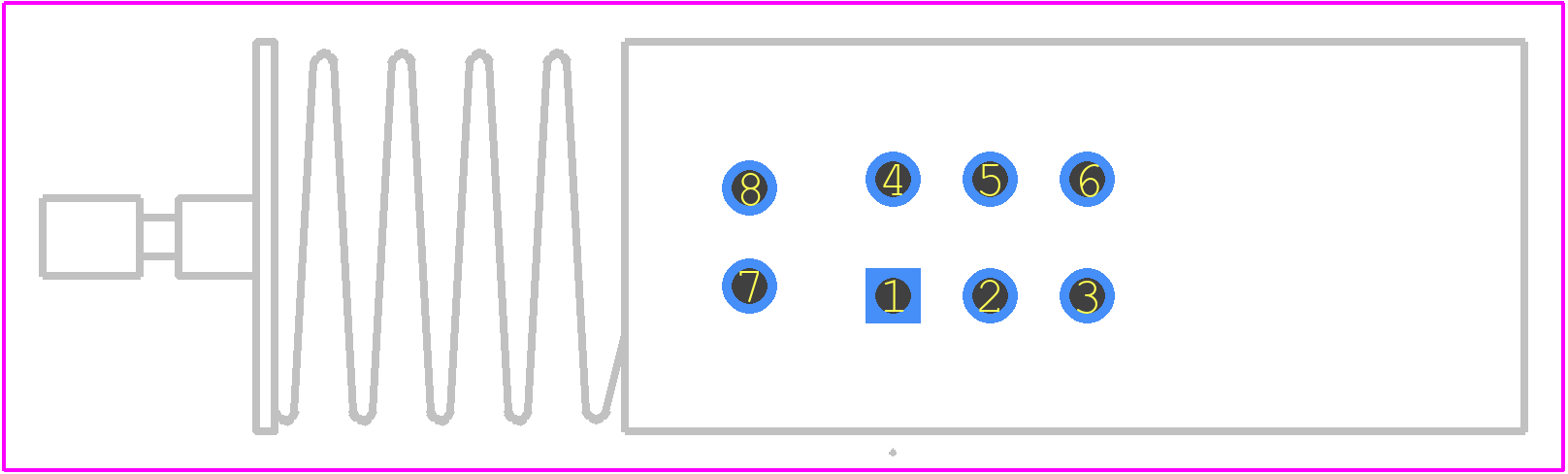

PCB Footprints
WBL2UOAGQR05CLR - E-Switch PCB footprint - Other - Other - WBL2UOAGQR05CLR-1
click to zoom
3D Models
WBL2UOAGQR05CLR - E-Switch - 3D model - Other - WBL2UOAGQR05CLR-1
click to zoom

WBL2UOAGQR05CLR Details

  • Manufacturer Part Number:

    WBL2UOAGQR05CLR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.31

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    8.2

  • Actuator Length:

    0.791 inch

  • Actuator Travel:

    3.302 mm

  • Actuator Type:

    PUSHBUTTON

  • Additional Feature:

    LED COLOR GREEN

  • Body Height:

    23.1902 mm

  • Body Length or Diameter:

    8.9916 mm

  • Contact Current(DC)-Max:

    0.3 A

  • Contact (DC) Max Rating R Load:

    0.3A@30VDC

  • Contact Resistance:

    0.02 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    10000 Cycle(s)

  • Illumination:

    LED

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • PCB Hole Count:

    8

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    DPDT

  • Switch Type:

    PUSHBUTTON SWITCH

  • Terminal Length:

    0.146 inch

  • Termination Type:

    SOLDER

WBL2UOAGQR05CLR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the WBL2UOAGQR05CLR is -20°C to 85°C.
  • Yes, the WBL2UOAGQR05CLR is designed for high-reliability applications, with a lifespan of up to 10,000 cycles and a low contact resistance of 10mΩ max.
  • Yes, the WBL2UOAGQR05CLR is designed to operate in harsh environments, with a rating of IP67 for dust and water resistance.
  • The recommended cleaning method for the WBL2UOAGQR05CLR is to use a soft brush or a lint-free cloth with a mild detergent and water. Avoid using harsh chemicals or abrasive materials that may damage the switch.
  • Yes, the WBL2UOAGQR05CLR is RoHS and REACH compliant, making it suitable for use in European Union countries and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WBL2UOAGQR05CLR Overview

Use the download button to access the WBL2UOAGQR05CLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WBL2U, or try a keyword search, such as Pushbutton Switches
