Part Image

WBL4UEEGQR05CLR - E-Switch

Description: PUSHBUTTON, 300mA, 30VDC 4PDT, On-On Through Hole, Right Angle

Download WBL4UEEGQR05CLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

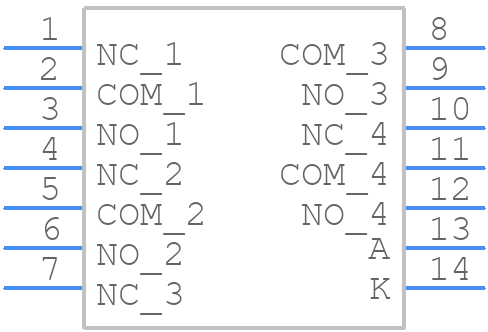

WBL4UEEGQR05CLR - E-Switch - PCB symbol
click to zoom
PCB Footprints

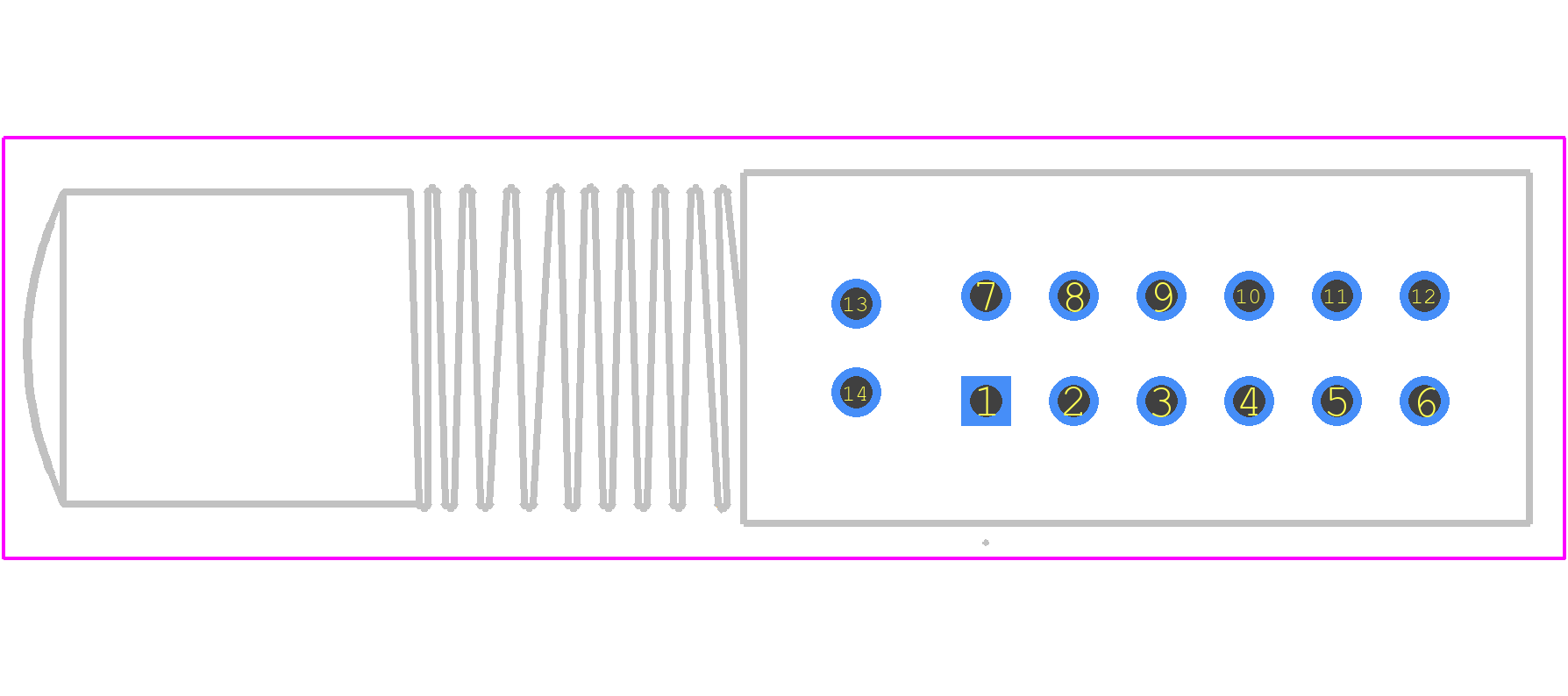

WBL4UEEGQR05CLR - E-Switch PCB footprint - Other - Other - WBL4UEEGQR05CLR-1
click to zoom
3D Models
WBL4UEEGQR05CLR - E-Switch - 3D model - Other - WBL4UEEGQR05CLR-1
click to zoom

WBL4UEEGQR05CLR Details

  • Manufacturer Part Number:

    WBL4UEEGQR05CLR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.33

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    8

  • Actuator Length:

    0.791 inch

  • Actuator Travel:

    3.302 mm

  • Actuator Type:

    PUSHBUTTON

  • Additional Feature:

    LED COLOR GREEN

  • Body Breadth:

    10.1092 mm

  • Body Length or Diameter:

    8.9916 mm

  • Contact Current(DC)-Max:

    0.3 A

  • Contact (DC) Max Rating R Load:

    0.3A@30VDC

  • Contact Resistance:

    0.02 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    10000 Cycle(s)

  • Illumination:

    LED

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • PCB Hole Count:

    14

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    4PDT

  • Switch Type:

    PUSHBUTTON SWITCH

  • Terminal Length:

    0.146 inch

  • Termination Type:

    SOLDER

WBL4UEEGQR05CLR Frequently Asked Questions (FAQs)

  • E-Switch provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or by contacting their technical support team.
  • E-Switch recommends following their recommended PCB mounting and soldering guidelines, and considering additional mechanical fastening or potting compounds to ensure reliable operation in harsh environments.
  • While the datasheet specifies a rated current, the maximum allowable current may be higher. Contact E-Switch technical support for guidance on derating the switch for high-current applications.
  • The WBL4UEEGQR05CLR is rated for operation up to 85°C, but E-Switch may have additional information on high-temperature performance or specialized versions of the switch for extreme environments.
  • E-Switch provides troubleshooting guides and application notes on their website, and their technical support team can assist with diagnosing and resolving issues with the switch.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WBL4UEEGQR05CLR Overview

Use the download button to access the WBL4UEEGQR05CLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WBL4U, or try a keyword search, such as Pushbutton Switches
