WBL4UEEYQR05CLR - E-Switch

WBL4UEEYQR05CLR Details

• Manufacturer Part Number:

  WBL4UEEYQR05CLR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.33

• Manufacturer:

  E-Switch Inc

• YTEOL:

  8.2

• Actuator Length:

  0.791 inch

• Actuator Travel:

  3.302 mm

• Actuator Type:

  PUSHBUTTON

• Additional Feature:

  LED COLOR YELLOW

• Body Breadth:

  10.1092 mm

• Body Height:

  23.2156 mm

• Body Length or Diameter:

  8.9916 mm

• Contact Current(DC)-Max:

  0.3 A

• Contact (DC) Max Rating R Load:

  0.3A@30VDC

• Contact Resistance:

  0.02 mΩ

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  10000 Cycle(s)

• Illumination:

  LED

• Insulation Resistance:

  100000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

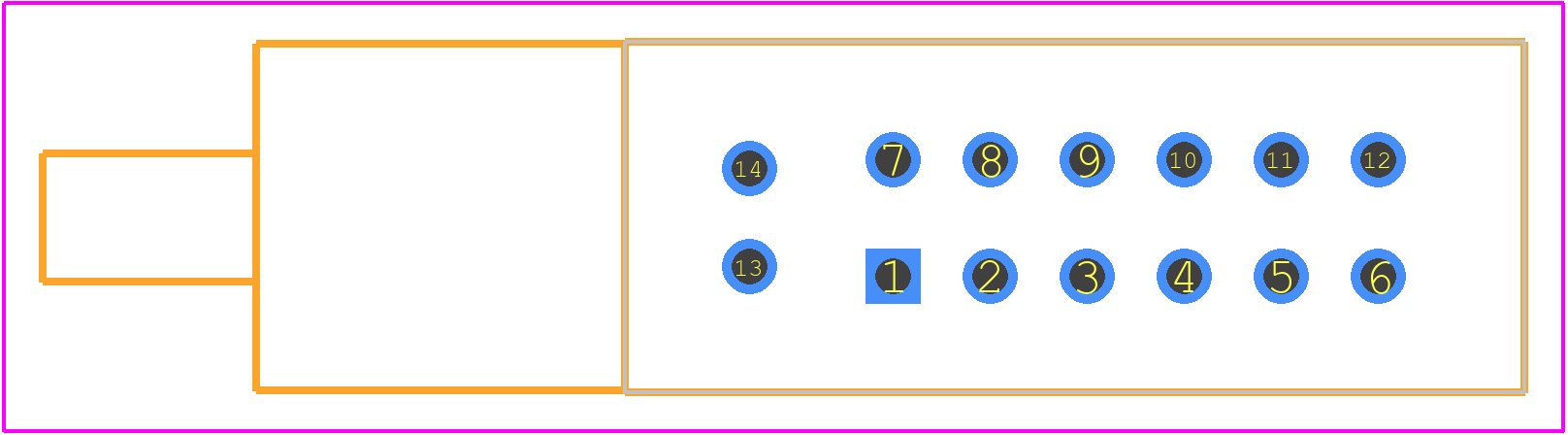

• PCB Hole Count:

  14

• Surface Mount:

  NO

• Switch Action:

  LATCHED

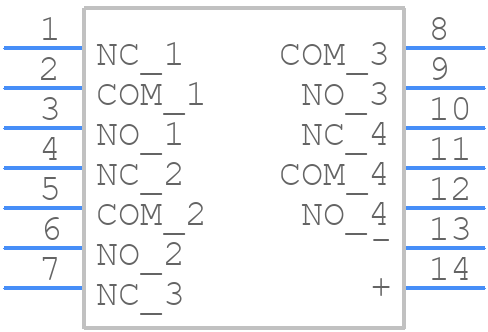

• Switch Function:

  4PDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Length:

  0.146 inch

• Termination Type:

  SOLDER
