Part Image

WBL4UOAYQR05CLR - E-Switch

Description: PUSHBUTTON, 8A (AC)/6A (DC), 125VAC/24VDC SPDT, On-(On), Panel Mount, Front

Download WBL4UOAYQR05CLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

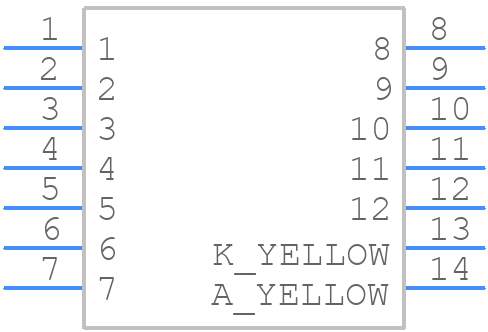

WBL4UOAYQR05CLR - E-Switch - PCB symbol
click to zoom
PCB Footprints

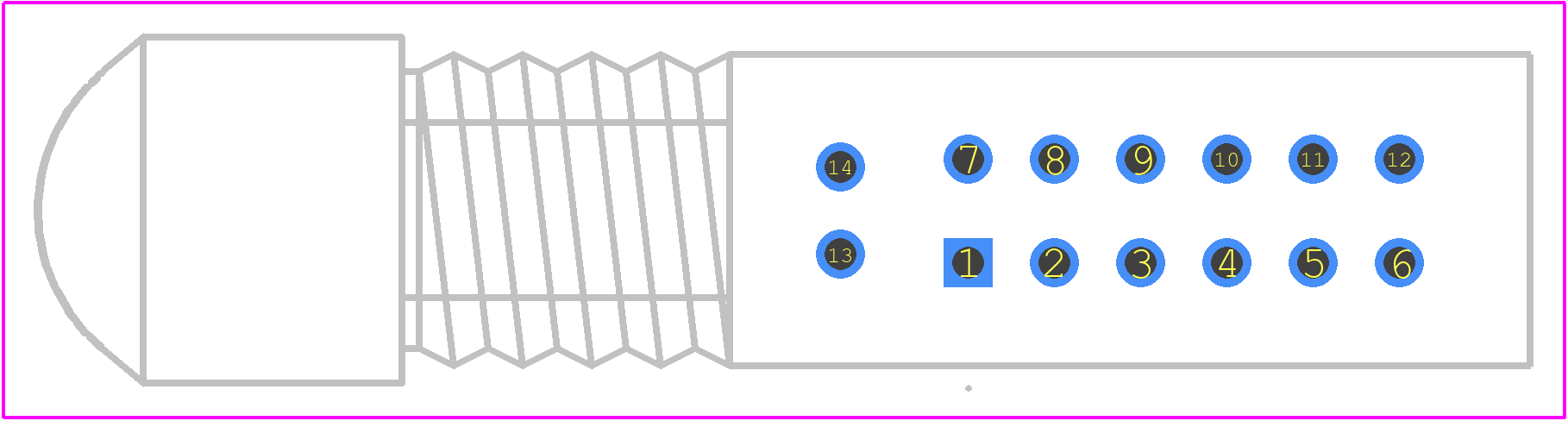

WBL4UOAYQR05CLR - E-Switch PCB footprint - Other - Other - WBL4UOAYQR05CLR-2
click to zoom
3D Models
WBL4UOAYQR05CLR - E-Switch - 3D model - Other - WBL4UOAYQR05CLR-2
click to zoom

WBL4UOAYQR05CLR Details

  • Manufacturer Part Number:

    WBL4UOAYQR05CLR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • Switch Type:

    PUSHBUTTON SWITCH

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WBL4UOAYQR05CLR Overview

Use the download button to access the WBL4UOAYQR05CLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WBL4U, or try a keyword search, such as Pushbutton Switches
