WFI32E01PE-I - Microchip

Description: WiFi Modules - 802.11 54-pad Wi-Fi SoC module, 802.11 b/g/n, 1MB Flash, 320KB RAM, Crypto, PCB ant

Download WFI32E01PE-I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
WFI32E01PE-I - Microchip - PCB symbol
click to zoom
PCB Footprints

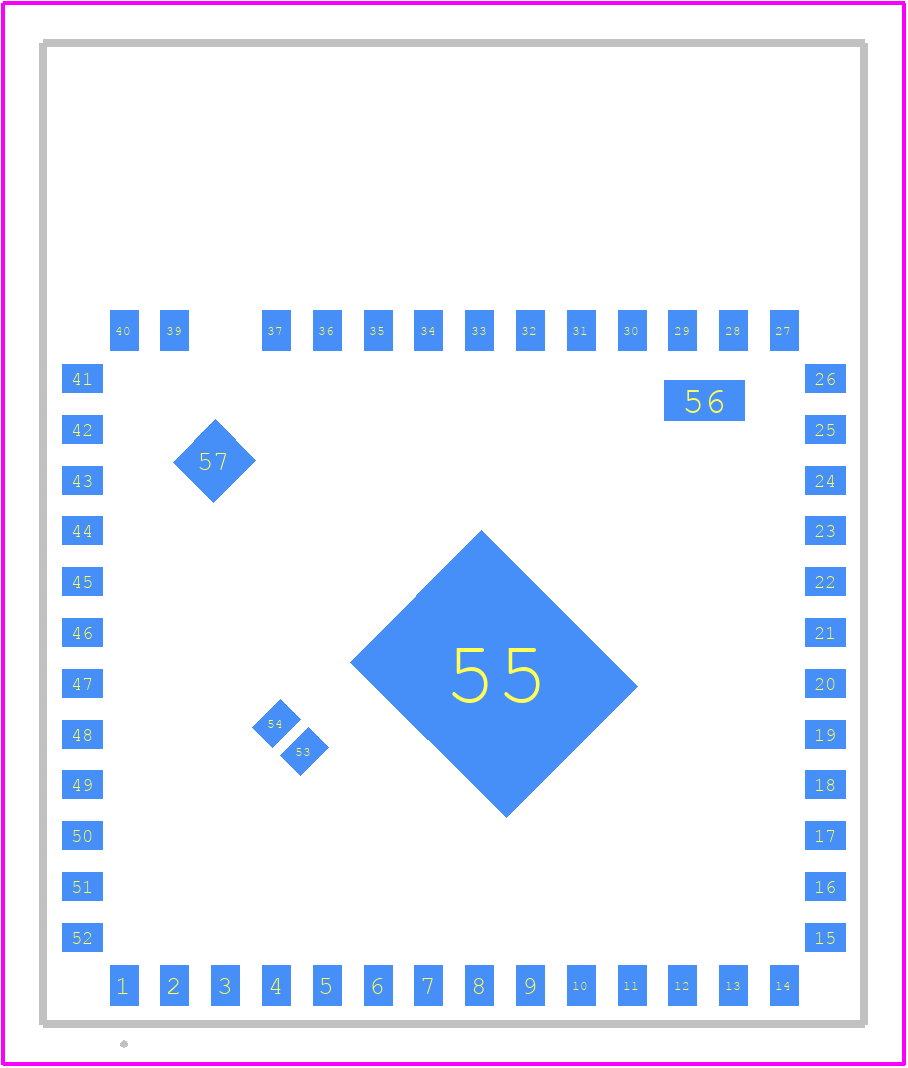

WFI32E01PE-I - Microchip PCB footprint - Other - Other - WFI32E01PE-I-17
click to zoom
3D Models
WFI32E01PE-I - Microchip - 3D model - Other - WFI32E01PE-I-17
click to zoom

WFI32E01PE-I Details

  • Manufacturer Part Number:

    WFI32E01PE-I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD-54

  • Pin Count:

    54

  • Manufacturer Package Code:

    MODULE-54

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    R-XQMA-N54

  • Length:

    24.5 mm

  • Number of Terminals:

    54

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    20.5 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

WFI32E01PE-I Frequently Asked Questions (FAQs)

  • The operating temperature range of the WFI32E01PE-I is -40°C to +85°C.
  • The WFI32E01PE-I has an onboard antenna, but you can also use an external antenna. For external antenna configuration, refer to the Microchip Wi-Fi Antenna Design Guide.
  • The maximum data transfer rate of the WFI32E01PE-I is up to 72.2 Mbps.
  • Yes, the WFI32E01PE-I supports Wi-Fi Direct, which allows for device-to-device connections without the need for a wireless access point.
  • The WFI32E01PE-I supports WPA2-PSK (AES) encryption, which provides secure data transmission. You can also implement additional security measures such as SSL/TLS encryption and secure socket layer (SSL) certificates.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WFI32E01PE-I Overview

Use the download button to access the WFI32E01PE-I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WFI32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
